Coliter ® Horizontal Check Valve – PN1.6, -20~180°C, Threaded Brass Body for Compact Backflow Prevention in Plumbing & HVAC
V2 Horizontal Check Valve – Miniature Threaded Lift Check Valve with Brass Body and PTFE Seal for Water, Gas, Oil & Mild Chemicals
The Coliter® V2 Horizontal Check Valve is a compact, threaded lift-type check valve designed for reliable backflow prevention in residential, commercial, and light industrial piping systems. Constructed with a high-quality brass body (HPb59-1 or CW617N), stainless steel spring, and PTFE sealing disc, it offers excellent corrosion resistance and long-term sealing performance. Rated at PN16 (1.6 MPa), it undergoes rigorous testing: shell test at 2.4 MPa, seal test at 1.76 MPa (water), and hermetic seal test at 0.6 MPa (air). Suitable for operating temperatures from -20℃ to 180℃, it handles a wide range of media including water, gas, oil, nitric acid, acetic acid, and other mildly corrosive fluids. The valve features ISO 228 cylindrical pipe threads (BSP parallel) for leak-free connections and is available in sizes from 1/4" to 2" (DN8–DN50). Designed specifically for **horizontal installation**, the V2 uses a spring-loaded lift mechanism that opens under forward flow and closes instantly upon flow reversal—preventing backflow without water hammer. Compliant with GB/T 12224 (design), GB/T 13927 (testing), and manufacturer-specified face-to-face dimensions, it is ideal for boiler feed lines, pump protection, irrigation systems, HVAC circuits, and plumbing applications where space is limited and maintenance-free operation is essential.

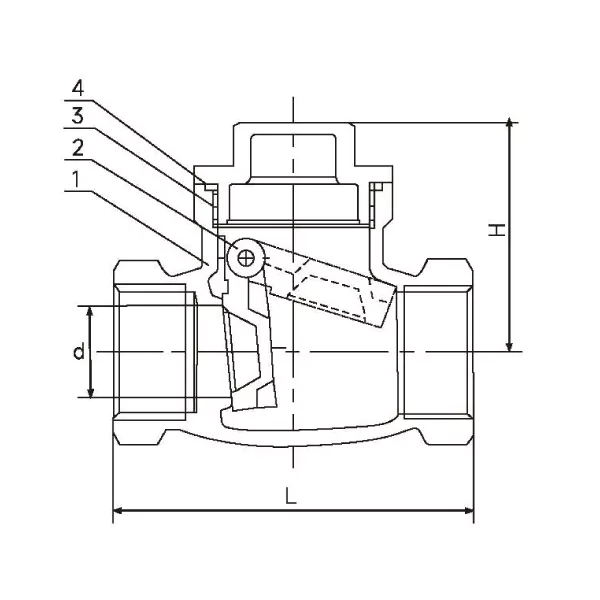

Installation diagram
Product Description
| Size(inch) | L | H | d | KGS/PC |
| 1/4" | 56 | 36.5 | 10 | |
| 3/8" | 56 | 36.5 | 10 | |
| 1/2" | 63 | 40 | 15 | 0.23 |
| 3/4" | 78 | 49.5 | 20 | 0.33 |
| 1" | 86 | 57 | 25 | 0.465 |
| 1¼" | 100 | 61.5 | 32 | 1.05 |
| 1½" | 110 | 71 | 38 | 1.4 |
| 2" | 130 | 71 | 47 |
Technical requirement
- The design and manufacturing of valves shall comply with the provisions of GB/T12224;
- The structural length of the valve shall comply with the manufacturer's requirements;
- The connection size of the valve shall comply with the provisions of ISO228 cylindrical pipe threads;
- The inspection and testing of valves shall comply with the provisions of GB/T13927.
Performance specifications
| Performance specifications | |||||
| Nominal Pressure | 1.6MPa | ||||
| test pressure | Strength | 2.4 | MPa | test medium | Water |
| Seal | 1.76 | Water | |||
| Upper seal | 1.76 | Water | |||
| Hermetic seal | 0.6 | Air | |||
| Applicable Temperature | -20℃~180℃ | ||||
| Applicable Medium | Water, gas, oil, nitric acid, acetic acid, etc. | ||||
