The Coliter® Z41W Stainless Steel Gate Valve is a high-integrity rising stem gate valve designed for reliable shut-off in aggressive and high-purity fluid systems. Constructed entirely from corrosion-resistant stainless steel—CF8 (304) or CF8M (316) for the body, bonnet, and disc—with a matching stainless steel stem, it delivers exceptional durability in environments involving water, steam, oil, nitric acid, acetic acid, and other corrosive media. Its rising stem design provides clear visual indication of the valve’s open/closed position, making it ideal for above-ground installations in chemical processing, pharmaceuticals, food & beverage, marine, and district heating systems. Rated at PN16 (1.6 MPa), the valve undergoes rigorous testing: shell test at 2.4 MPa (1.5×PN) and seal test at 1.76 MPa (1.1×PN). It operates reliably within a temperature range of -20℃ to 180℃. Featuring a full-port, straight-through flow path, it minimizes pressure drop and ensures unobstructed flow. Available in sizes from DN50 to DN400 with flanged end connections per GB/T 9113 or ANSI B16.5, the Z41W complies with Chinese standards GB/T 12234 (design), GB/T 12221 (face-to-face length), and GB/T 13927 (testing). With precision-machined metal sealing surfaces and optional soft-seal variants in related models, the Z41W offers long service life, smooth operation, and maintenance-free performance in critical industrial applications.

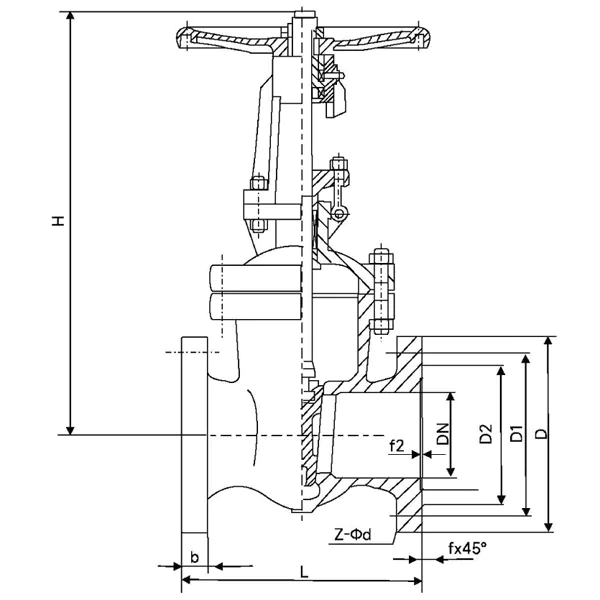

Installation diagram
Product Description
| DN | Connection size | Overall dimensions | |||||||||
| L | D | D1 | D2 | f | b | Z-Φd | H手 | D0 | H电 | Motor unit | |
| Z41W-16P(P3、P8、R、R3、R8) Z941W-16P (P3、P8、R、R3、R8) | |||||||||||
| 50 | 250 | 160 | 125 | 100 | 3 | 20 | 4-18 | 358 | 240 | 653 | DZW10 |
| 65 | 265 | 180 | 145 | 120 | 3 | 20 | 4-18 | 375 | 240 | 665 | DZW10 |
| 80 | 280 | 195 | 160 | 135 | 3 | 20 | 8-18 | 433 | 280 | 725 | DZW10 |
| 100 | 300 | 215 | 180 | 155 | 3 | 22 | 8-18 | 502 | 320 | 787 | DZW10 |
| 125 | 325 | 245 | 210 | 185 | 3 | 22 | 8-18 | 612 | 360 | 902 | DZW20 |
| 150 | 350 | 280 | 240 | 210 | 3 | 24 | 8-23 | 676 | 360 | 955 | DZW30 |
| 200 | 400 | 335 | 295 | 265 | 3 | 24 | 12-23 | 820 | 400 | 1105 | DZW30 |
| 250 | 450 | 405 | 355 | 320 | 3 | 26 | 12-25 | 969 | 450 | 1343 | DZW45 |
| 300 | 500 | 460 | 410 | 375 | 3 | 28 | 12-25 | 1142 | 560 | 1516 | DZW60 |
| 350 | 550 | 520 | 470 | 435 | 3 | 30 | 16-25 | 1280 | 640 | 1978 | DZW60 |
| 400 | 600 | 580 | 525 | 485 | 3 | 32 | 16-30 | 1452 | 640 | 1849 | DZW90 |
Main performance specification
| Nominal pressure | 1.6-16.0 |
| Housing | Px1.5 times |
| Sealing pressure | Px1.1 times |
| Applicable medium | Water, steam, oil, nitric acid, acetic acid |
Materials of main parts
| Part name | Material |
| Valve body | Stainless steel |
| Bonnet | Stainless steel |
