Coliter ® Y-Shaped Filter – PN16, -10~80°C, Compact Strainer with Stainless Steel Screen for Water & Industrial Fluid Systems

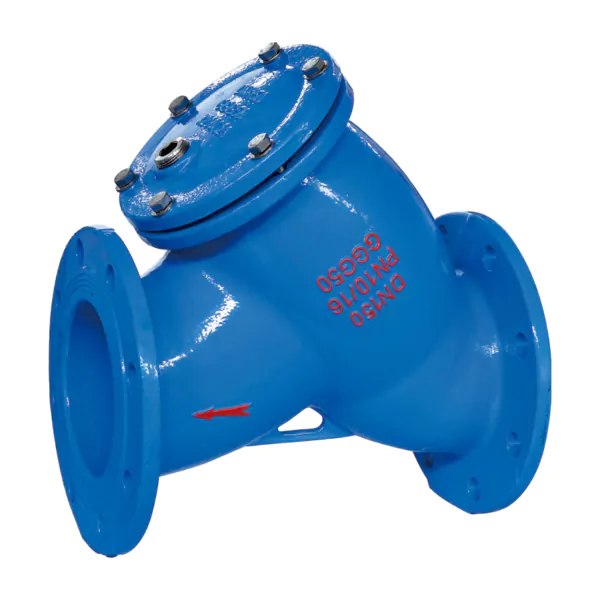

GL41H Y-Shaped Filter – Ductile Iron or Stainless Steel Inline Strainer for Efficient Debris Removal and Equipment Protection
The Coliter® GL41H Y-Shaped Filter is a compact, high-efficiency pipeline strainer designed to remove solid impurities from water, steam, oil, and other industrial fluids, safeguarding sensitive downstream components such as valves, pumps, meters, and control systems from clogging, wear, and failure. Its streamlined Y-shaped body allows for installation directly in-line with minimal space requirement and low flow resistance. Constructed from ductile iron (QT450) or optional stainless steel (CF8/CF8M), the valve body ensures durability under operating pressures up to PN16 (1.6 MPa). The filter operates reliably within a temperature range of -10℃ to 80℃ (extendable with appropriate seals). At its core is a removable stainless steel filter screen—typically rated at 18–100 mesh (standard 20–30 mesh)—which captures particles while allowing clean fluid to pass through. Cleaning is simple: the filter cartridge can be extracted via a bolted cover or union connection without dismantling the entire pipeline. An optional drain plug at the bottom facilitates sediment discharge. Available in sizes from DN15 to DN600, with end connections in threaded (BSP/NPT) or flanged (per GB/T 17241.6 / ISO 7005) configurations, the GL41H complies with GB/T 12221 and undergoes pressure testing per GB/T 13927. Ideal for building water mains, HVAC systems, boiler feed lines, irrigation, and light industrial applications, this Y-strainer delivers reliable, maintenance-friendly filtration with a small footprint and high efficiency.

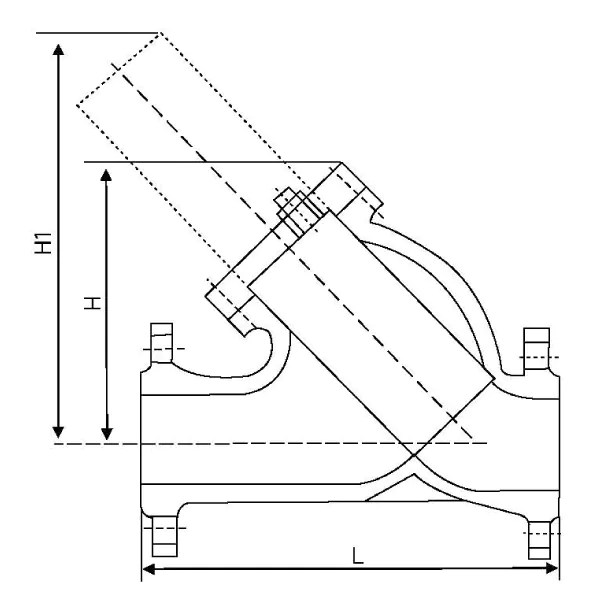

Installation diagram
Product Description
| DN | L (Thread) | L (Flange) | H (Thread) | H (Flange) | H1 (Thread) | H1 (Flange) |
|---|---|---|---|---|---|---|
| 15 | 90 | 110 | 75 | 73 | 105 | 103 |
| 20 | 100 | 120 | 85 | 88 | 123 | 127 |
| 25 | 110 | 120 | 95 | 93 | 140 | 137 |
| 32 | 130 | 160 | 102 | 100 | 152 | 148 |
| 40 | 160 | 170 | 117 | 115 | 170 | 168 |
| 50 | 190 | 180 | 140 | 135 | 174 | 195 |
| 65 | - | 200 | - | 198 | - | 270 |
| 80 | - | 238 | - | 210 | - | 295 |
| 100 | - | 273 | - | 250 | - | 344 |
| 125 | - | 300 | - | 305 | - | 422 |
| 150 | - | 340 | - | 358 | - | 485 |
| 200 | - | 415 | - | 450 | - | 602 |
| 250 | - | 475 | - | 503 | - | 710 |
| 300 | - | 520 | - | 578 | - | 815 |
| 350 | - | 630 | - | 598 | - | 844 |
| 400 | - | 680 | - | 618 | - | 872 |
| 450 | - | 780 | - | 693 | - | 978 |
| 500 | - | 850 | - | 765 | - | 1080 |
| 600 | - | 1035 | - | - | - | - |
The product is an indispensable auxiliary component in various pipeline systems. Its main function is to filter the impuritiin the medium, protect the equipment and accessories on the pipeline from loss and blockage, and improve the purity of tproduct and purify the gas. When the fuid enters the filter cartridge with a certain specification of fiter screen, its impurities blocked, and the clean filtrate is discharged from the filter outlet When cleaning is needed., just take out the detachable fitcartridge and reinstallit after treatment. In addition, the fiter screen internals of the filter can be replaced, and the Y-type filthas the advantages of small volume, fine fiter hole, low resistance, high efficiency, convenient installation and maintenance, locost It can meet the needs of various pipelines.
Product Features
- The structure is simple and advanced. The filter element of vulnerable parts adopts high-strength 304 stainless steel, and the water network is 18-30 mesh. The sewage discharge resistance is small and the sewage discharge is convenient.
- The number of filter screens can be set according to user needs.
- The corrosion-resistant sealing ring adopts nitrile rubber, with reliable sealing performance.
Main Performance Specification
| Parameter | Content |
|---|---|
| Nominal Diameter | DN15–600mm |
| Operating Temperature | ≤80°C |
| Executive Standards | GB/T 13927 |
Materials of Main Parts
| Part Name | Material |
|---|---|
| Valve Body | Ductile iron, stainless steel |
| Valve Cover | Ductile iron, stainless steel |
| Shim | Nitrile rubber |
| Strainer | Stainless steel |
