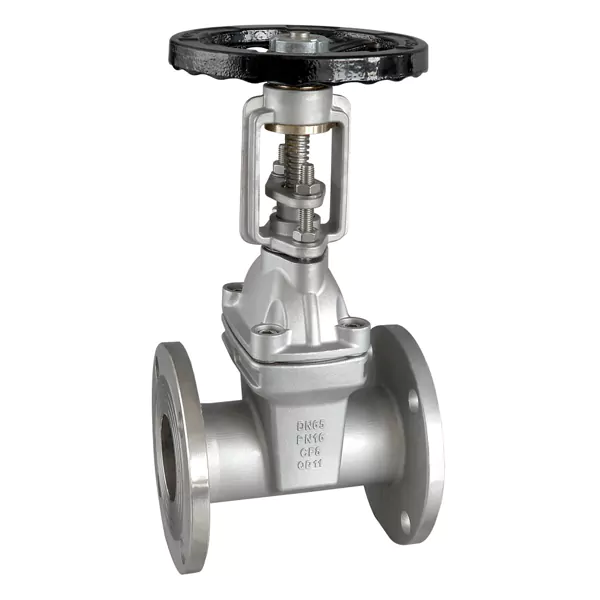

Coliter ® Stainless Steel Soft Seal Flange Rising Stem Gate Valve – PN10/16, -10~80°C, Zero-Leakage for Water & Industrial Systems

Z41X Stainless Steel Soft Seal Flange Rising Stem Gate Valve – Full-Port Gate Valve with Visual Stem Indication and EPDM/NBR Seal

The Coliter® Z41X Stainless Steel Soft Seal Flange Rising Stem Gate Valve is a high-performance isolation valve engineered for reliable, bubble-tight shut-off in water supply, fire protection, HVAC, and light industrial pipeline systems. Constructed entirely from corrosion-resistant CF8 (304 stainless steel)—including the body, bonnet, disc, and stem—with an SS304 stem nut, it ensures exceptional durability in aggressive or high-purity environments. Its rising stem design provides clear visual indication of the valve’s open/closed status, making it ideal for above-ground installations where operational feedback is essential. The valve achieves zero leakage through a resilient EPDM or nitrile rubber (NBR) soft seal bonded to the stainless steel wedge, which compresses against precision-machined seats for tight shut-off even after extended use. Rated for PN10/16 (1.0–2.5 MPa) and suitable for media temperatures from -10℃ to 80℃, it complies with Chinese standards: GB/T 24924-2010 (design), GB/T 12221-2005 (face-to-face length), GB/T 13927-2008 (testing), and GB/T 17241.6-2008 (flange dimensions). Featuring a full-port flow path and standard flanged end connections, the Z41X minimizes pressure drop and ensures smooth, unobstructed flow. Available in sizes from DN50 to DN600, it delivers maintenance-free, long-life performance in critical fluid control applications requiring leak-proof reliability and visual position monitoring.
