Coliter ® Magnetically Lockable Union Gate Valve – Lead-Free, PN16, WRAS Certified
ZF1072 Magnetically Lockable Union Gate Valve – Secure & Serviceable for Water Meter Applications

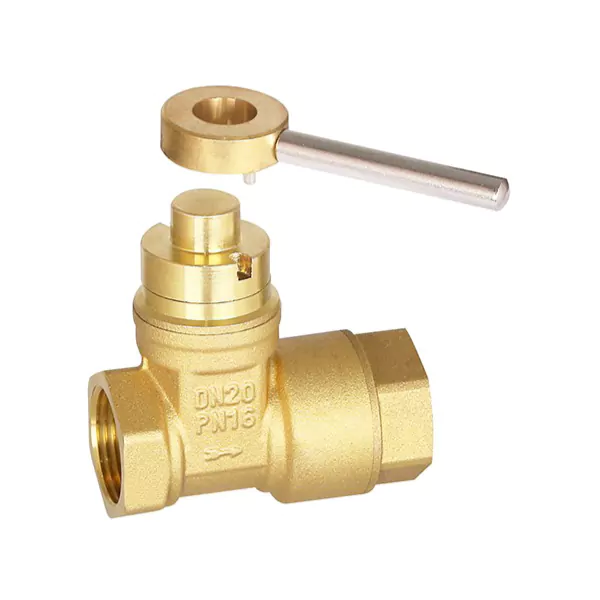

The Coliter® ZF1072 Magnetically Lockable Union Gate Valve is a lead-free brass gate valve that integrates tamper-proof security with easy maintenance. Designed for residential water meter leads and utility service lines, it features a proprietary magnetic locking mechanism requiring a dedicated magnetic key for operation—preventing unauthorized shut-off—while its integrated union nut connection enables full disassembly without cutting pipes, allowing quick replacement of internal components such as the stem or seat. Constructed from forged HPb59-1 or CW617N brass with a resilient rubber wedge seal, it ensures bubble-tight closure and full-port flow. Rated at PN16 (1.6 MPa) and suitable for temperatures from -20°C to 90°C, the ZF1072 complies with WRAS, ACS, and GB/T 17241 standards for potable water safety. Available in sizes DN15–DN25 with ISO 228 (BSP) threads, it delivers reliable, long-term performance where both security and serviceability are critical.

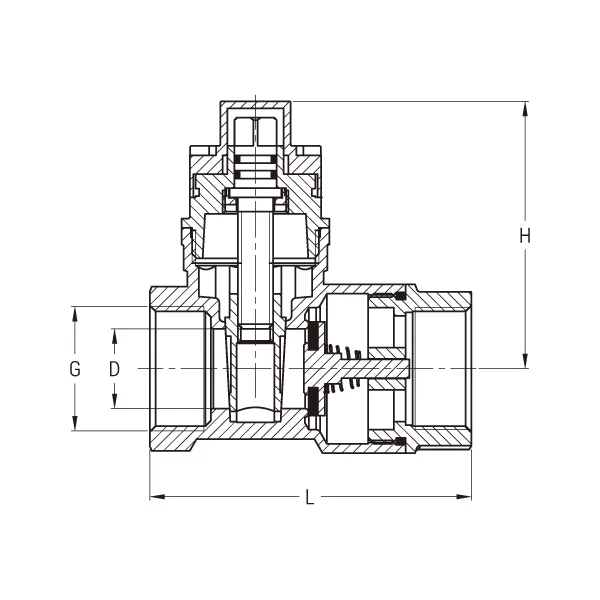

Installation diagram
Product Description
| DN | G | D | L | H |
| 20 | 3/4" | 17 | 68.5 | 57 |
Technical Specifications
Nominal Pressure:1.6 MPa
Working Medium:Water, Non-corrosive Liquids, Saturated Steam
Working Temperature:0℃ ≤ t ≤ 90℃
Pipe Threads:ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Lockable Gate Valve
Coliter® offers a complete range of lockable gate valves engineered to prevent unauthorized operation in residential, municipal, and utility applications. The series includes magnetic lockable types (e.g., ZF1011, ZF1072) requiring a proprietary magnetic key, and mechanical lockout models (e.g., ZF1021, ZF1022) with slide or pin locks—ideal for water meter leads, building risers, and public infrastructure. All valves feature lead-free brass bodies, comply with WRAS, ACS, and GB/T 17241 standards for potable water, and support full-port flow with zero leakage. Available in DN15–DN25 with ISO 228 threads. Trusted by water authorities worldwide for tamper-proof performance and OEM flexibility.
