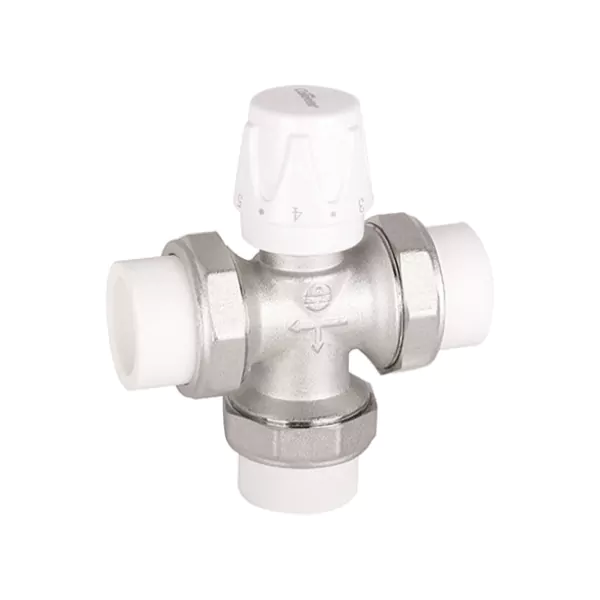

Coliter ® Three-way Thermostatic Valve – 1.0 MPa, 0–90°C, for Hydronic Mixing Applications
NQ3012 Three-way Thermostatic Valve – Brass Mixing Valve for Radiator and Underfloor Heating Systems
The Coliter® NQ3012 Three-way Thermostatic Valve is a precision-engineered brass mixing valve designed for temperature regulation in hydronic heating systems, including radiators and underfloor circuits. It enables automatic or manual blending of hot supply water with cooler return water to deliver a stable, reduced output temperature—ideal for protecting sensitive systems like low-temperature floor heating. Constructed from high-quality lead-free brass, it is rated for a nominal pressure of 1.0 MPa and operates reliably with water temperatures ranging from 0°C to 90°C. The valve features ISO 228 (BSP parallel) pipe threads and has standard dimensions for size De32: L=119 mm, H1=70 mm, H2=64.5 mm. Suitable for use with thermostatic actuators or manual control heads, the NQ3012 ensures efficient heat distribution, system protection, and long-term durability in residential and light commercial applications.

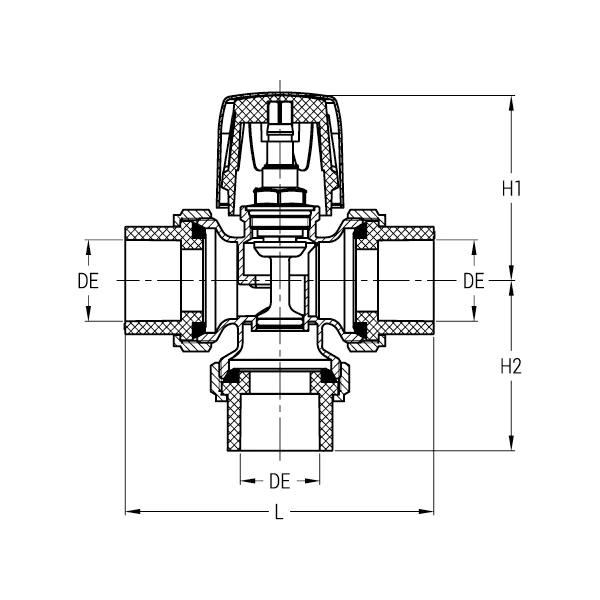

Installation diagram
Product Description
| DN | DE | L | H1 | H2 |
| De32 | 32 | 119 | 70 | 64.5 |
Technical Specifications
Nominal Pressure: 1.0 MPa
Working Medium: Water
Working Temperature: 0℃ ≤ t ≤ 90℃
Pipe Threads: ISO 228
