Model NQ5001

Coliter ® Thermostatic Control Valve – 1.6 MPa, 5–90°C, for Hydronic Radiator Systems

Go to
NQ5001
NQ5001.1
NQ5001
NQ5001.1

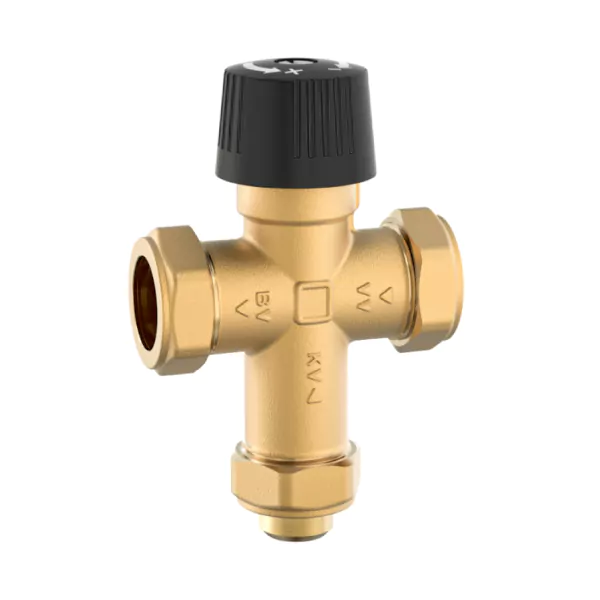

NQ5001 Thermostatic Control Valve – Manual Temperature Regulation Valve for Radiators

The Coliter® NQ5001 Thermostatic Control Valve is a manually operated thermostatic valve designed for precise temperature control in hydronic radiator heating systems without requiring electricity. It features a user-friendly manual knob with numbered settings (typically 1–5) to adjust heat output based on room comfort preferences. Constructed from high-quality lead-free brass, the valve is rated for a nominal pressure of 1.6 MPa and operates within a medium temperature range of 5°C to 90°C. It complies with ISO 228 (BSP parallel) threading standards and is available in size De15 (G1/2"), with overall dimensions L=80 mm, H=115 mm, and A=41 mm. The valve includes an M30×1.5 mm thread on the actuator head, allowing optional upgrade to an automatic thermostatic head for smart climate control. Ideal for cost-effective, maintenance-free comfort in residential and light commercial buildings.

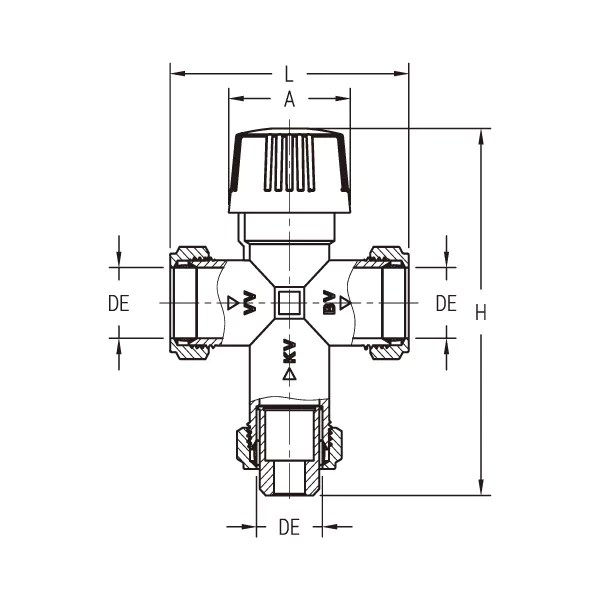

Installation diagram

Product Description

DNGDELHA
De15G1/2"228011541

Technical Specifications

Nominal Pressure: 1.6 MPa
Working Medium: Water、Non-corrosive Liquid
Working Temperature: 5℃ ≤ t ≤ 90℃
Pipe Threads: ISO 228

Product Inquiry

We will contact you within one working day. Please pay attention to your email.

Faq - Frequent questions

Coliter®’s manual thermostatic valves provide simple, reliable temperature regulation for hydronic radiator systems without electricity. The series includes straight models (NQ2026, NQ2027, NQ2029) and angle types (NQ2012, NQ2028, NQ2030, NQ2039), all featuring a manual knob with numbered settings (e.g., 1–5) to adjust heat output based on user preference. Constructed from high-quality lead-free brass, rated at PN10 (1.0 MPa), and suitable for temperatures up to 110°C, these valves comply with European heating standards and include an M30×1.5mm thread for optional upgrade to automatic thermostatic heads. Ideal for cost-effective, maintenance-free comfort control in residential and light commercial buildings.
