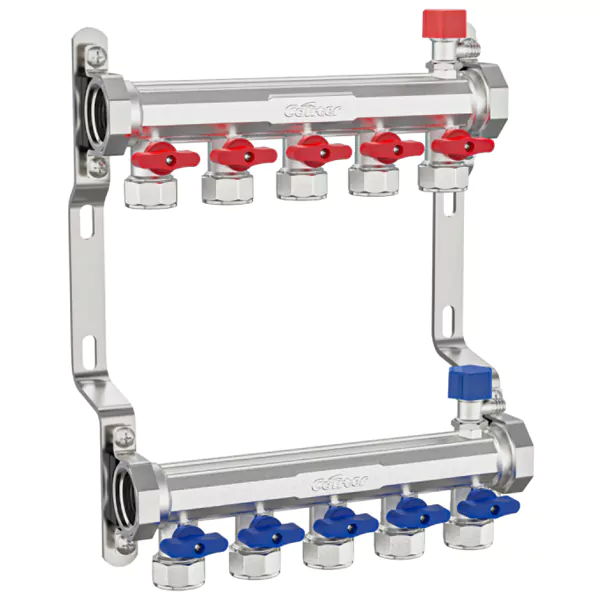

Coliter ® Manual Manifold, PN1.0MPa, 0–110°C, Brass HPb58-2, 2–10 Circuits
FSQ1031 Manual Manifold – One-Piece Forged Brass Distribution Header for Hydronic Heating and Plumbing Systems
The Coliter® FSQ1031 Manual Manifold is a high-quality, manually operated distribution manifold designed for centralized control of hot and cold water in underfloor heating, radiator circuits, and domestic plumbing. Crafted from forged HPb58-2 brass using one-piece hot forging technology, it ensures uniform wall thickness (≥2.0 mm), structural integrity, and resistance to bursting or leakage. The main header features an octagonal design for enhanced stability and premium aesthetics, with a nickel-plated surface finish. Available in configurations from 2 to 10 circuits, it supports branch connections for 12×16 mm or 16×20 mm PEX/PERT tubing at a standard spacing of 46 mm. The main pipe uses DN25 (G1") threaded connections, and the center height is fixed at 210 mm. Rated for PN ≤ 1.0 MPa and medium temperatures from 0°C to 110°C, it includes 360° rotatable manual air vents and interchangeable live-joint outlet adapters for easy installation and maintenance—making it a reliable choice for residential and light commercial applications.

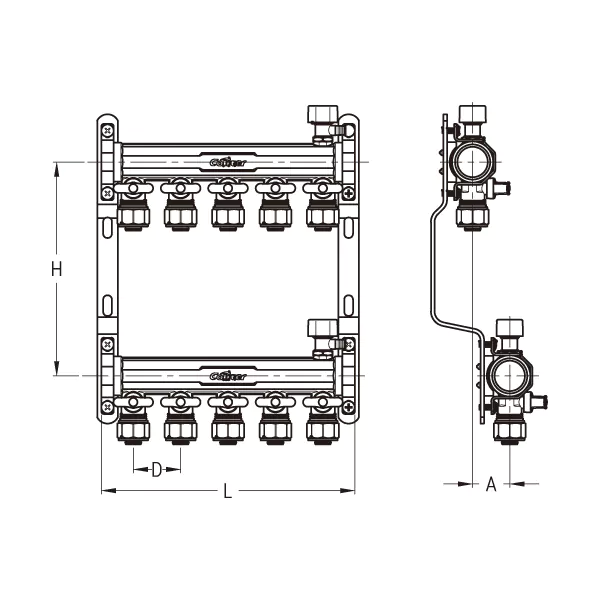

Installation diagram
Product Description
| DN | D | L | A | H |
| 25*1216 | 46 | (N-1)*46+60 | 36.5 | 210 |
| 25*1620 | 48 | (N-1)*46+60 | 36.5 | 210 |
Technical Specifications
Nominal Pressure: PN ≤ 1.0 MPa
Medium Temperature: 0℃ ≤ t ≤ 110℃
Main Pipe Connection: DN25 - G1"
Branch Pipe Spacing: 46 mm
Branch Pipe Connection: 1216 / 1620
Material: Brass HPb58-2
Circuit Count: 2 - 10 Circuits
Center Height: 210 mm
Surface Finish: Nickel Plating
Working Medium: Hot and Cold Water
Product Features
1. One-Piece Hot Forging: Die-cast in one piece using hot forging technology, ensuring uniform and dense wall thickness.
2. Octagonal Main Pipe Design: The main manifold features an octagonal structure, offering rational design, stability, and a premium look.
3. Robust Build: Average wall thickness ≥ 2.0 mm, making it sturdy and durable.
4. 360° Rotatable Air Vent: Equipped with a manual air vent that rotates 360 degrees freely for easy access.
5. Interchangeable Adapters: Live joint outlet adapters with replaceable cores (compatible with 1216 / 1620 pipe sizes).
6. High Flow Capacity: Engineered to withstand water hammer and thermal expansion/contraction, ensuring zero leakage or bursting.
