Coliter ® Pressure Relief Valve – PN16, ≤80°C, Hydraulic Self-Operated for Stable Outlet Pressure in Water Systems

200X Pressure Relief Valve – Pilot-Operated Pressure Reducing Valve for Precise Downstream Pressure Control in Domestic & Fire Water Supply

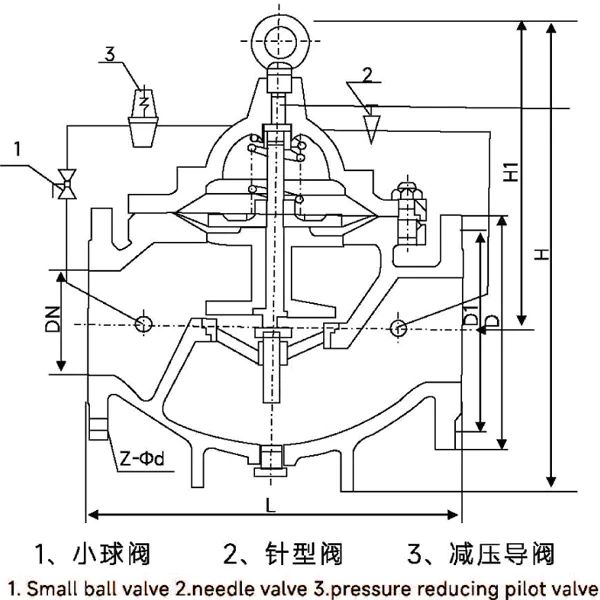

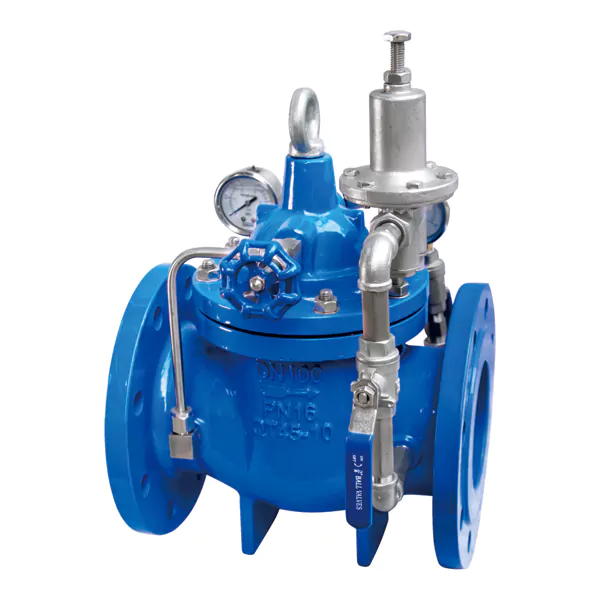

The Coliter® 200X Pressure Relief Valve is a hydraulically self-operated, pilot-controlled pressure reducing valve designed to automatically lower and stabilize high inlet pressure to a constant, adjustable outlet pressure—regardless of fluctuations in upstream pressure or flow demand. It is widely used in domestic water supply, fire protection systems, and industrial water networks to protect downstream equipment, ensure user safety, and maintain consistent service pressure. The valve uses the energy of the flowing medium itself for actuation—requiring no external power—and features a high-sensitivity pilot relief valve that continuously monitors outlet pressure. When downstream pressure exceeds the setpoint, the pilot opens to drain the control chamber of the main valve, causing it to throttle flow and reduce pressure; when pressure drops below the setpoint, the pilot closes, allowing the main valve to open further. This feedback loop ensures precise, stable regulation with minimal deviation. Constructed from ductile iron or cast steel, rated at PN16 (1.6 MPa), and suitable for media temperatures up to 80°C, it handles clean water only. Available in sizes from DN20 to DN800 with flanged end connections per GB/T 17241.6. With advantages including high accuracy, stable performance, easy adjustment, long service life, and low maintenance, the 200X delivers intelligent, energy-efficient pressure management for modern water distribution infrastructure.
