Coliter ® Magnetic Lockable Gate Valve – Lead-Free, PN16, WRAS Certified

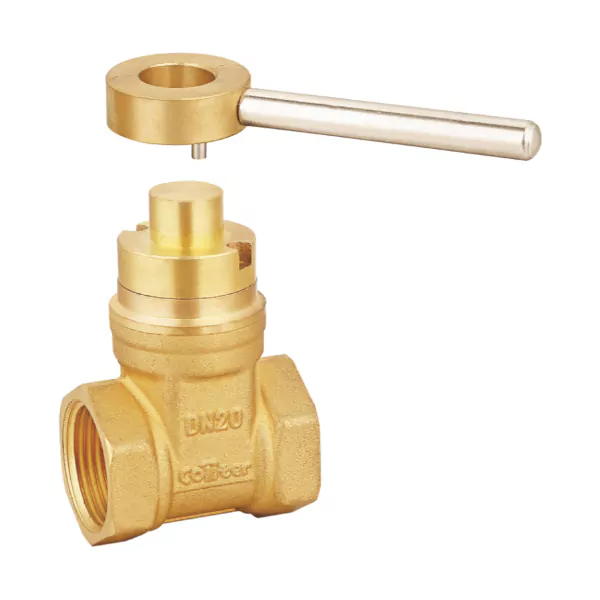

ZF1012 Magnetic Lockable Gate Valve – Tamper-Resistant Shut-Off with Refined Key Access
The Coliter® ZF1012 Magnetic Lockable Gate Valve is a secure, lead-free brass gate valve engineered to prevent unauthorized operation in residential water meter leads, building service lines, and municipal utility networks. It incorporates an advanced magnetic locking system that requires a proprietary magnetic key tool for actuation—ensuring tamper resistance without external locks, caps, or visible mechanisms. Built from forged HPb59-1 or CW617N brass with a resilient rubber wedge seal, it delivers bubble-tight shut-off and full-port flow for minimal pressure loss. Certified to WRAS, ACS, and GB/T 17241 standards for potable water safety, the ZF1012 operates at PN16 (1.6 MPa) within a temperature range of 0°C to 90°C. Available in sizes DN15–DN50 with ISO 228 (BSP) threads, it offers reliable, maintenance-free performance for water authorities and facility managers seeking secure infrastructure control.

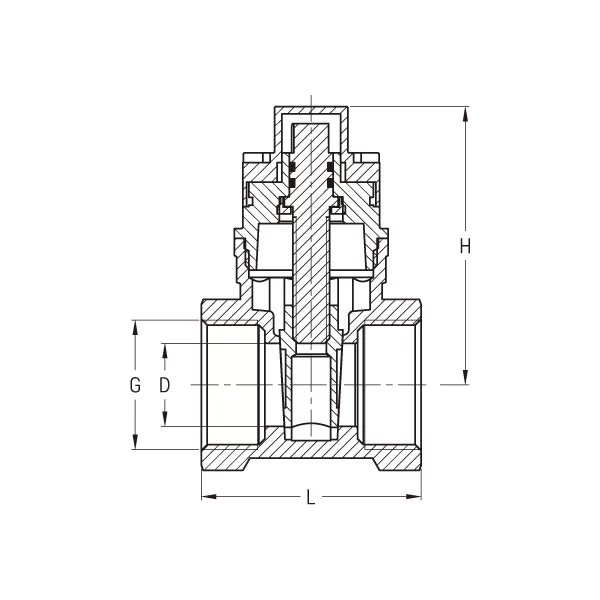

Installation diagram
Product Description
| DN | G | D | L | H |
| 15 | 1/2" | 13 | 42 | 50.5 |
| 20 | 3/4" | 17 | 45 | 58 |
| 25 | 1" | 20 | 49 | 62 |
| 32 | 1¼ | 26.5 | 51 | 74.5 |
| 40 | 1½ | 30 | 54 | 103.5 |
| 50 | 2" | 40 | 63 | 118 |
Technical Specifications
Nominal Pressure:1.6 MPa
Working Medium:Water, Non-corrosive Liquids, Saturated Steam
Working Temperature:0℃ ≤ t ≤ 90℃
Pipe Threads:ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Lockable Gate Valve
Coliter® offers a complete range of lockable gate valves engineered to prevent unauthorized operation in residential, municipal, and utility applications. The series includes magnetic lockable types (e.g., ZF1011, ZF1072) requiring a proprietary magnetic key, and mechanical lockout models (e.g., ZF1021, ZF1022) with slide or pin locks—ideal for water meter leads, building risers, and public infrastructure. All valves feature lead-free brass bodies, comply with WRAS, ACS, and GB/T 17241 standards for potable water, and support full-port flow with zero leakage. Available in DN15–DN25 with ISO 228 threads. Trusted by water authorities worldwide for tamper-proof performance and OEM flexibility.
