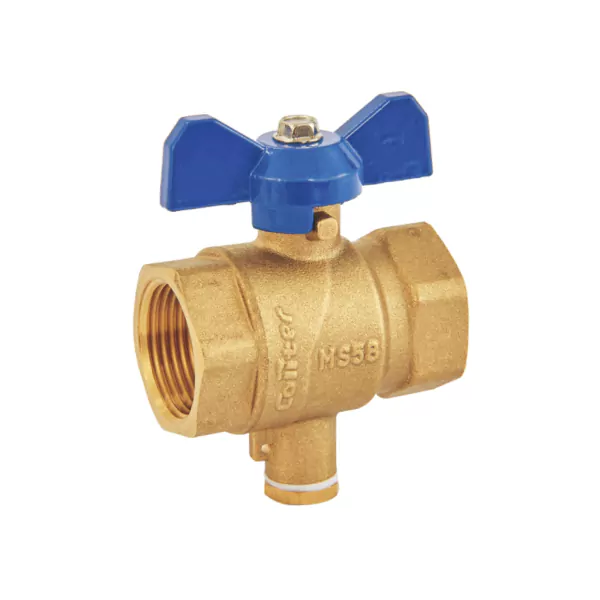

Coliter ® Thermowell Ball Valve – Lead-Free, PN16, Lever Handle
QF5005 Thermowell Ball Valve (Lever Handle) – Lead-Free Brass with Temperature Probe Port
The Coliter® QF5005 Thermowell Ball Valve (Lever Handle) is a lead-free, full-port brass ball valve featuring an integrated thermowell port for real-time temperature monitoring in heating, solar thermal, and HVAC systems. The thermowell allows insertion of a temperature sensor or probe without system interruption, ensuring accurate fluid temperature measurement while maintaining a sealed, leak-free connection. Equipped with a robust lever handle for clear open/close indication and easy quarter-turn operation, the valve is constructed from forged brass with a chrome-plated ball and PTFE seats for reliable bubble-tight shut-off. It has ISO 228 (BSP) parallel threads and is rated at PN16 (1.6 MPa), suitable for water, oil, and saturated steam within a working temperature range of -20°C to 100°C. Compliant with WRAS and ACS standards, the QF5005 is ideal for boiler outlets, heat exchangers, and district heating circuits requiring combined flow control and temperature sensing.
Installation diagram
Product Description
| DN | G | D | L | H | A |
| 15 | G1/2" | 14 | 49.5 | 40 | 54 |
| 20 | G3/4" | 19 | 55 | 43 | 54 |
| 25 | G1" | 23 | 66 | 52.5 | 67 |
Technical Specifications
Nominal Pressure:1.6 MPa
Working Medium:Water, Oil, Saturated Steam
Working Temperature:-20℃ ≤ t ≤ 100℃
Pipe Threads:ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Brass ball valve
Coliter® offers a comprehensive range of lead-free brass ball valves for residential, commercial, and light industrial applications. Our portfolio includes full-bore designs with lever or knob handles, available in female/male/union thread configurations (BSP ISO 228), extended stems for buried installations, and specialized variants with filters or thermowells. All valves feature PTFE seats, chrome-plated balls, and are rated at PN16 (1.6 MPa), suitable for water, oil, gas, and saturated steam up to 110°C. Compliant with WRAS, ACS, and GB/T 17241 standards, Coliter brass ball valves deliver bubble-tight shut-off, low torque operation, and long service life across plumbing, heating, irrigation, and utility systems.
