Model QF3132

Coliter ® F-Type Gas Tee Ball Valve, 1.6MPa, -20–60°C, BSP Threaded

Go to
QF3132
QF3132.1
QF3132
QF3132.1

QF3132 F-Type Gas Tee Ball Valve – Brass 3-Way Shut-Off Valve for Gas Meter and Appliance Branch Connections

The Coliter® QF3132 F-Type Gas Tee Ball Valve is a specialized brass 3-way ball valve designed for gas distribution systems, commonly used to create a branch connection from a main gas line—such as between a gas meter and multiple appliances. Its "F-type" configuration features three ports: one inlet and two outlets arranged in a T/tee layout, allowing simultaneous or selective shut-off of gas flow. Constructed from high-quality forged brass with PTFE seals, it ensures reliable, leak-tight performance in natural gas, manufactured gas, and liquefied petroleum gas (LPG) systems. Rated for a nominal pressure of 1.6 MPa and operating temperatures from -20°C to 60°C, it complies with national gas safety standards. Threaded ends conform to ISO 228 (BSP parallel), with standard size DN15 (G1/2"). The quarter-turn handle includes a clear open/close indicator, enabling safe and intuitive control in residential and utility gas installations.

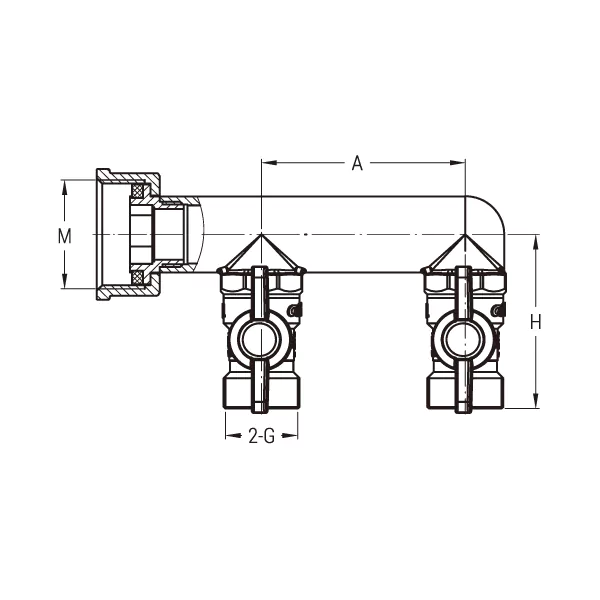

Installation diagram

Product Description

DNGMHA
15G1/2"30x24855

Technical Specifications

Nominal Pressure: 1.6MPa
Working Medium: Natural Gas, Manufactured Gas, Liquefied Petroleum Gas (LPG)
Working Temperature: -20℃ ≤ t ≤ 60℃
Pipe Threads: ISO 228
