Coliter ® Remote Control Float Valve – PN16, ≤80°C, Hydraulic Automatic for Water Level Control in Tanks & Reservoirs

100X Remote Control Float Valve – Pilot-Operated Diaphragm Valve with External Float Ball for Precise, Energy-Free Liquid Level Regulation

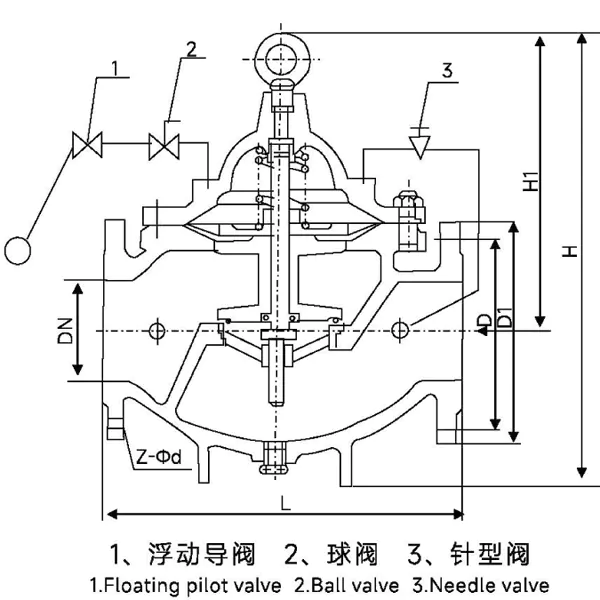

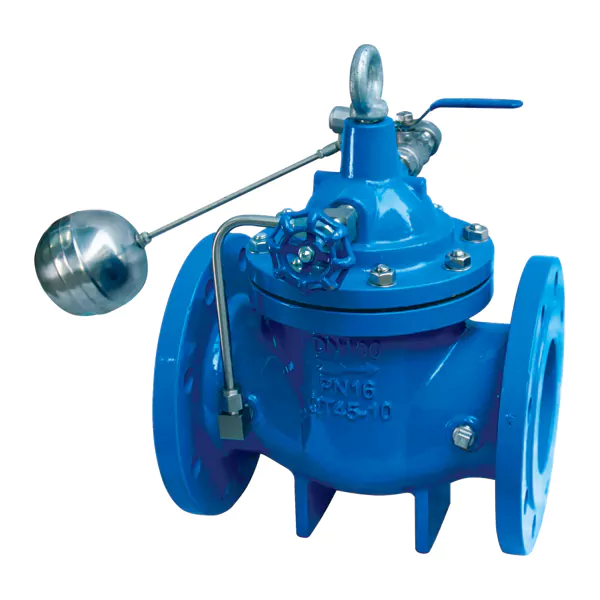

The Coliter® 100X Remote Control Float Valve is a hydraulically operated, pilot-controlled valve designed for fully automatic water level management in elevated tanks, reservoirs, fire water pools, and irrigation systems. It eliminates the need for electricity or external power by using system pressure and a remote float ball assembly to precisely control inlet flow. When the water level rises to the preset height, the float ball closes the pilot valve, allowing pressure to build in the main valve’s control chamber and shut off inflow. As the level drops, the float ball opens the pilot, draining the chamber and reopening the main valve to refill the tank—achieving reliable, bubble-tight shut-off without drift or false triggering. The diaphragm-type design ensures smooth, frictionless operation and is recommended for pipe sizes up to DN450; for larger diameters (≥DN500), a piston-type variant is advised. Constructed from ductile iron or brass with epoxy coating, rated at PN16 (1.6 MPa), and suitable for media temperatures up to 80°C, it handles clean water only. Available in sizes from DN20 to DN800 with flanged or threaded connections per relevant standards. Featuring slow-closing action to prevent water hammer, adjustable level settings, and flexible installation orientation, the 100X delivers maintenance-free, energy-efficient water storage control for municipal, industrial, and building applications.
