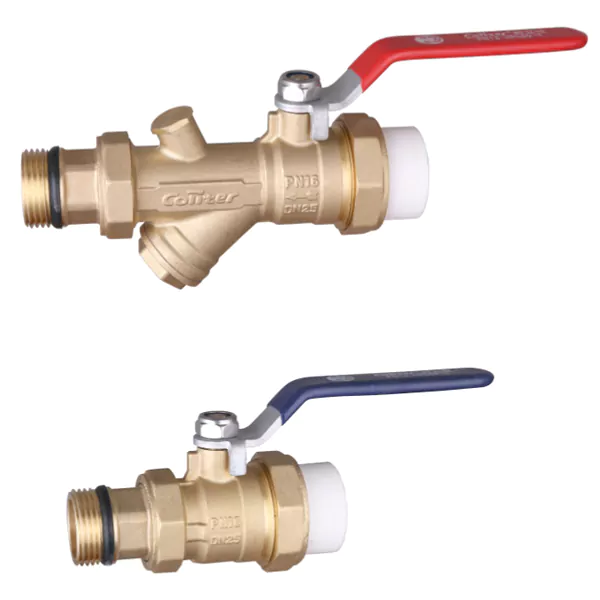

Coliter ® Multi-Function Prefabricated Sleeve Valve – Natural Color, PN16
QF6030 Multi-Function Prefabricated Sleeve Valve (Natural Color) – Dual Outlet for Meter & Gauge
The Coliter® QF6030 Multi-Function Prefabricated Sleeve Valve (Natural Color) is a lead-free brass valve designed for modern water service installations requiring integrated functionality and clean aesthetics. It combines a full-port ball valve with two side outlets: one for direct connection to a water meter and another for a pressure gauge or system drain. The "natural color" finish retains the original brass appearance without plating, offering a distinctive look while maintaining corrosion resistance in indoor environments. Constructed from high-quality forged brass with a chrome-plated ball and PTFE seats, it ensures reliable bubble-tight shut-off and smooth operation. Rated at PN16 (1.6 MPa) and suitable for water within a temperature range of 0°C to 90°C, it complies with GB/T 17241 and potable water safety standards. With ISO 228 (BSP) parallel threads and available in sizes such as DN25×32 and DN32×40, the QF6030 is ideal for visible utility installations, premium residential projects, and smart metering systems where both performance and appearance matter.
Installation diagram
Product Description

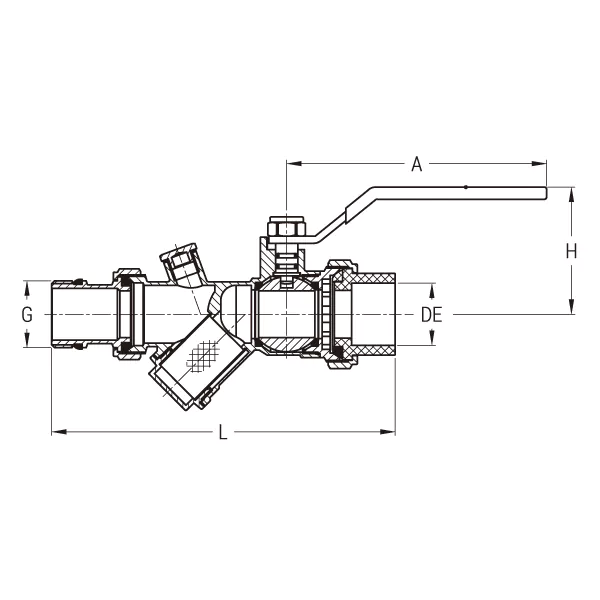

| DN | G | De | L | H | A |
| 25*32 | G1" | 32 | 170 | 61 | 128.5 |
| 32*40 | G1¼ | 40 | 212 | 74 | 141.5 |

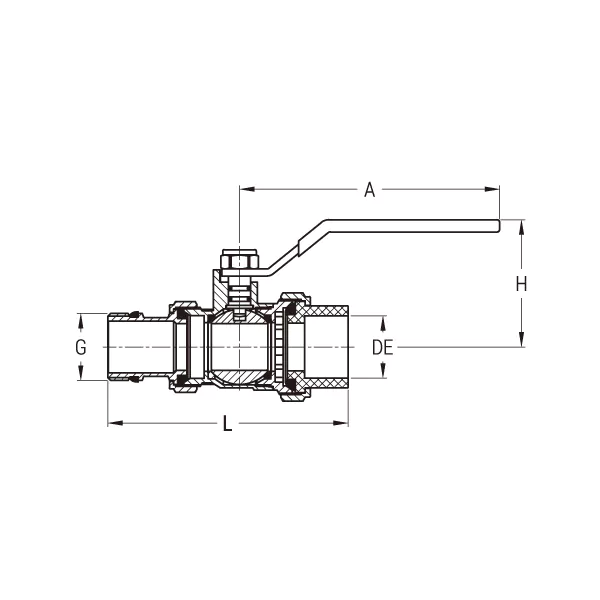

| DN | G | De | L | H | A |
| 25*32 | G1" | 32 | 119 | 61 | 128.5 |
| 32*40 | G1¼ | 40 | 140 | 74 | 141.5 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water, Steam
Working Temperature: 0℃ ≤ t ≤ 90℃
Pipe Threads: ISO 228
