Coliter ® Mechanical Lockout Gate Valve – Lead-Free, PN16, WRAS Certified
ZF1022 Mechanical Lockout Gate Valve – Pin-Lock Security for Utility & Building Applications
The Coliter® ZF1022 Mechanical Lockout Gate Valve is a robust, lead-free brass gate valve engineered for tamper-resistant shut-off in water meter leads, building risers, and public utility infrastructure. It features a reliable pin-lock mechanism that secures the handle in the open or closed position using a removable pin—offering a simple, tool-based security solution without magnets or electronics. Constructed from forged HPb59-1 or CW617N brass with a resilient rubber wedge seal, it ensures bubble-tight closure and full-port flow. Rated at PN16 (1.6 MPa) and suitable for temperatures from -20°C to 110°C, the ZF1022 complies with WRAS, ACS, and GB/T 17241 standards for potable water safety. Available in sizes DN15–DN25 with ISO 228 (BSP) threads, it provides durable, cost-effective security for municipal and commercial water systems.

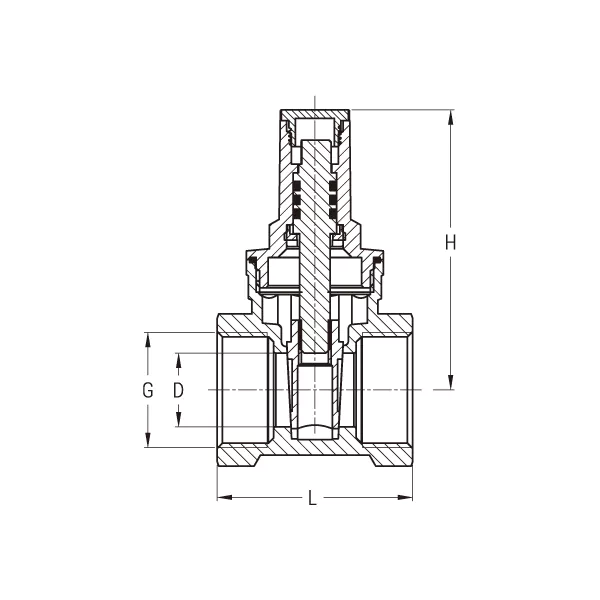

Installation diagram
Product Description
| DN | G | D | L | H |
| 15 | 1/2" | 13 | 42 | 58 |
| 20 | 3/4" | 17 | 45 | 64.5 |
| 25 | 1" | 20 | 49 | 69 |
Technical Specifications
Nominal Pressure:1.6 MPa
Working Medium:Water, Non-corrosive Liquids, Saturated Steam
Working Temperature:-20℃ ≤ t ≤ 110℃
Pipe Threads:ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Lockable Gate Valve
Coliter® offers a complete range of lockable gate valves engineered to prevent unauthorized operation in residential, municipal, and utility applications. The series includes magnetic lockable types (e.g., ZF1011, ZF1072) requiring a proprietary magnetic key, and mechanical lockout models (e.g., ZF1021, ZF1022) with slide or pin locks—ideal for water meter leads, building risers, and public infrastructure. All valves feature lead-free brass bodies, comply with WRAS, ACS, and GB/T 17241 standards for potable water, and support full-port flow with zero leakage. Available in DN15–DN25 with ISO 228 threads. Trusted by water authorities worldwide for tamper-proof performance and OEM flexibility.
