Coliter ® Smart Manifold, PN1.0MPa, 0–110°C, Brass HPb58-2, 2–10 Circuits
FSQ2022 Smart Manifold – Advanced Brass Distribution System with Integrated Flow Monitoring for Intelligent Hydronic Control

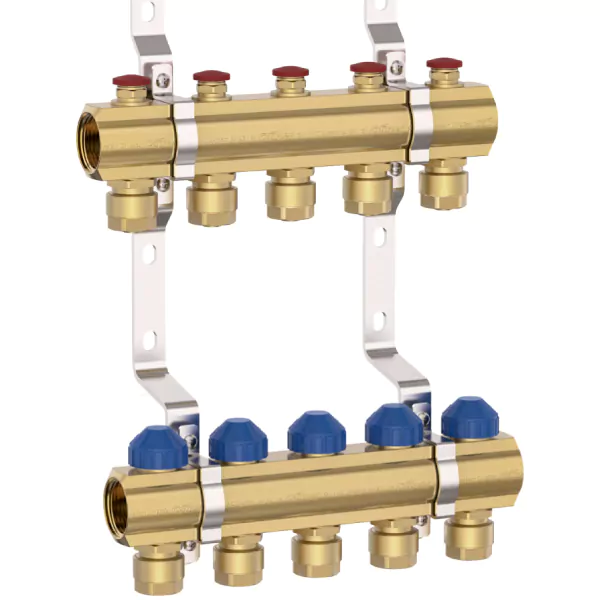

The Coliter® FSQ2022 Smart Manifold is a premium brass manifold engineered for high-efficiency, intelligent distribution of hot and cold water in underfloor heating, radiator circuits, and smart building systems. Constructed from forged HPb58-2 brass, it features a robust one-piece design with uniform wall thickness (≥2.5 mm), ensuring exceptional resistance to water hammer, thermal expansion, and long-term leakage. The polished surface is available in natural brass or electroplated finishes for enhanced aesthetics and corrosion protection. Designed for smart integration, it supports 2 to 10 circuits with branch connections for 12×16 mm or 16×20 mm PEX/PERT tubing at a precise spacing of 50 mm. The main header uses DN25 (G1") threaded inlet/outlet, and the center height is fixed at 210 mm. Rated for PN ≤ 1.0 MPa and medium temperatures from 0°C to 110°C, it includes live-joint outlet adapters for tool-free installation and maintenance. Compatible with flow meters, electric actuators, and digital monitoring systems, the FSQ2022 enables real-time flow visualization, zone balancing, and remote control—making it ideal for energy-efficient, IoT-ready residential and commercial radiant heating applications.

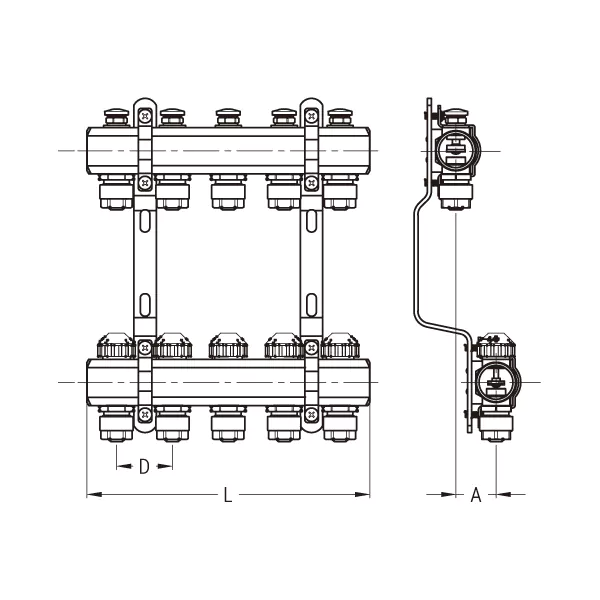

Installation diagram
Product Description
| DN | D | L | A | H |
| 25*1216 | 50 | (N-1)*50+53 | 36.5 | 210 |
| 25*1620 | 50 | (N-1)*50+53 | 36.5 | 210 |
Technical Specifications
Nominal Pressure: PN ≤ 1.0 MPa
Medium Temperature: 0℃ ≤ t ≤ 110℃
Main Pipe Connection: DN25 - G1"
Branch Pipe Spacing: 50 mm
Branch Pipe Connection: 1216 / 1620
Material: Brass HPb58-2
Circuit Count: 2 - 10 Circuits
Center Height: 210 mm
Surface Finish: Natural Finish / Electroplating
Working Medium: Hot and Cold Water
Product Features
1. Modular Assembly: Block-style assembly process allows for personalized customization.
2. Premium Appearance: Polished surface with optional finishes (Natural/Electroplated), offering a steady and elegant look.
3. Heavy-Duty Construction: Average wall thickness ≥ 2.5 mm, ensuring sturdiness and longevity.
4. Easy Maintenance: Live joint outlet adapters allow for convenient installation and maintenance.
5. High Flow Design: Resists water hammer impact and thermal expansion/contraction, preventing leaks and bursts.
