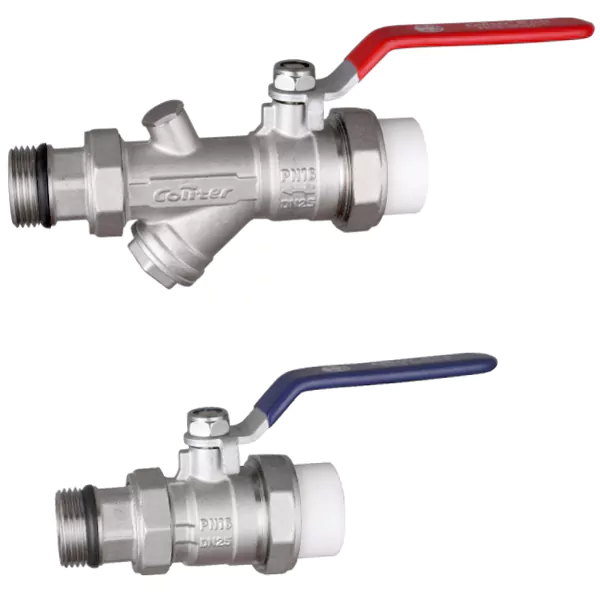

Coliter ® Multi-Function Prefabricated Sleeve Valve – Nickel-Plated, PN16
QF6030N Multi-Function Prefabricated Sleeve Valve – Dual Outlet for Meter & Gauge, Nickel-Plated Finish
The Coliter® QF6030N Multi-Function Prefabricated Sleeve Valve is a lead-free brass valve engineered for high-performance water service applications in residential, commercial, and municipal systems. It integrates a full-port ball valve with two functional side outlets: one for direct connection to a water meter and another for a pressure gauge or system drain. The valve features a durable nickel-plated finish that enhances corrosion resistance and provides a clean, modern aesthetic—ideal for visible installations. Constructed from high-quality forged brass with a chrome-plated ball and PTFE seats, it ensures bubble-tight shut-off and smooth quarter-turn operation. Rated at PN16 (1.6 MPa) and suitable for water within a temperature range of 0°C to 90°C, it complies with GB/T 17241 and potable water safety standards. Available in sizes such as DN25×32 and DN32×40 with ISO 228 (BSP) parallel threads, the QF6030N offers a reliable, all-in-one solution that reduces fittings, minimizes leak points, and simplifies installation.
Installation diagram
Product Description

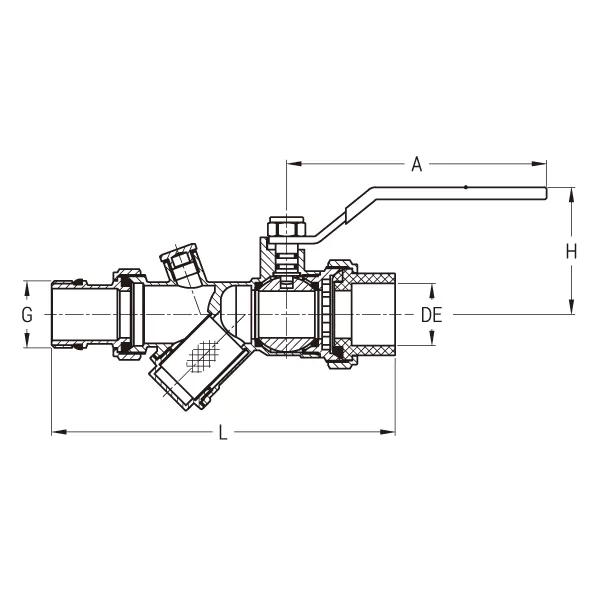

| DN | G | De | L | H | A |
| 25*32 | G1" | 32 | 170 | 61 | 128.5 |
| 32*40 | G1¼ | 40 | 212 | 74 | 141.5 |

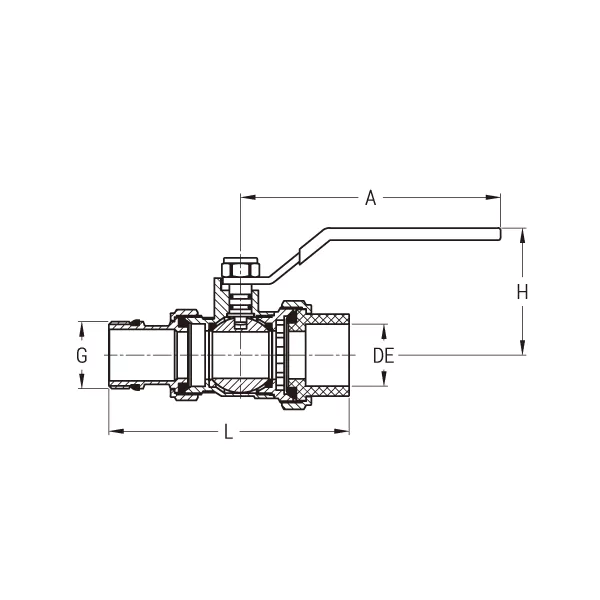

| DN | G | De | L | H | A |
| 25*32 | G1" | 32 | 119 | 61 | 128.5 |
| 32*40 | G1¼ | 40 | 140 | 74 | 141.5 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water, Steam
Working Temperature: 0℃ ≤ t ≤ 90℃
Pipe Threads: ISO 228
