Coliter ® Magnetic Lock Ball Valve – PN16, Lead-Free Brass
QF6002 Magnetic Lock Ball Valve – Tamper-Resistant Shut-Off for Utility & Residential Use
The Coliter® QF6002 Magnetic Lock Ball Valve is a lead-free brass ball valve featuring an integrated magnetic locking mechanism that prevents unauthorized operation. Designed for water, oil, and steam applications, it requires a proprietary magnetic key to open or close, making it ideal for water meter isolation, rental properties, public infrastructure, and shared facilities where tamper-proof control is essential. The valve has a full-port design with ISO 228 (BSP) parallel threads, rated at PN16 (1.6 MPa), and operates within a temperature range of -20°C to 100°C. Constructed from high-quality forged brass with a chrome-plated ball and PTFE seals, it ensures smooth quarter-turn operation and reliable bubble-tight shut-off. Compliant with WRAS, ACS, EN, and GB standards, the QF6002 combines security, durability, and certified safety for potable water systems.

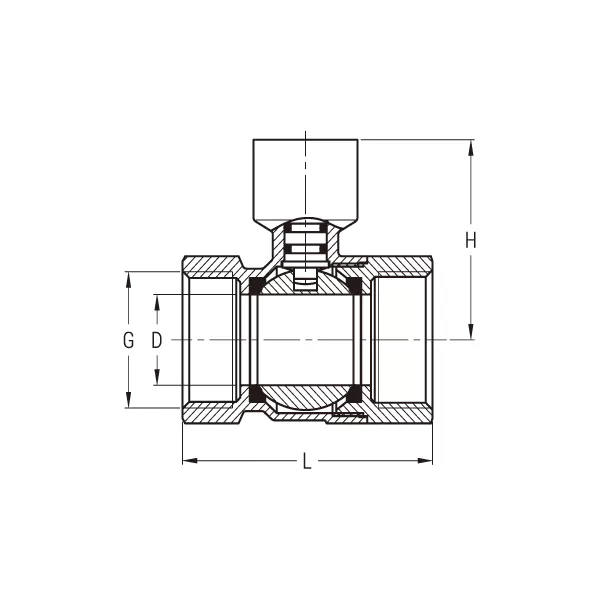

Installation diagram
Product Description
| DN | G | D | L | H |
| 15 | G1/2" | 15 | 50.5 | 28.5 |
| 20 | G3/4" | 19 | 58 | 46 |
| 25 | G1" | 23 | 68 | 51 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water, Oil, Steam
Working Temperature: -20℃ ≤ t ≤ 100℃
Pipe Threads: ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Brass Valve With Lock
Coliter® provides a specialized range of brass valves with integrated locking mechanisms to prevent unauthorized operation in residential, municipal, and utility applications. The series includes magnetically locked ball valves (e.g., QF6002, QF6213, QF6313) requiring a proprietary magnetic key, mechanically locked models (e.g., QF6327) with slide or pin locks, and multi-lock variants (QF6223) for enhanced security. Many feature built-in Y-strainers or thermometers for added functionality. All are made from lead-free brass, comply with WRAS, ACS, EN, and GB standards, and operate up to PN16 (1.6 MPa) and 100–120°C. Ideal for water meter isolation, rental properties, and public infrastructure—combining tamper-proof control with certified safety for potable water systems.
