Coliter ® Wafer Butterfly Valve – PN10/16, -10~80°C, Manual Compact Flow Control for Water & Industrial Pipelines
D71X Wafer Butterfly Valve – Ductile Iron Body with Stainless Steel Disc and Elastomer Seal for Bubble-Tight Shut-Off

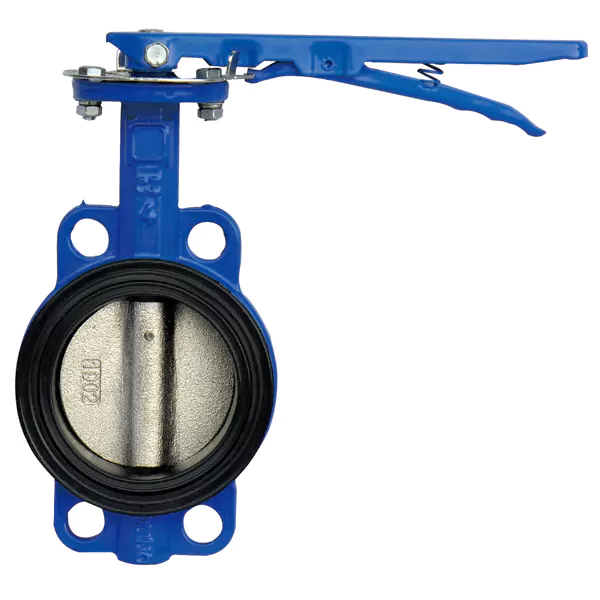

The Coliter® D71X Wafer Butterfly Valve is a compact, lightweight, and economical manual butterfly valve designed for efficient on-off and throttling control in water supply, sewage, HVAC, fire protection, and light industrial systems. Featuring a wafer-style design, it installs directly between two pipeline flanges without end connections, minimizing space, weight, and installation cost. The valve consists of a nodular (ductile) cast iron body, a corrosion-resistant stainless steel disc and shaft, and a replaceable elastomer seat made of NBR, EPDM, PTFE, or silicone rubber—selected based on media compatibility—ensuring reliable, bubble-tight sealing. Rated for PN10/16 (1.0–1.6 MPa), it undergoes shell testing at up to 2.4 MPa and seal testing at 1.76 MPa, with an operating temperature range of -10℃ to 80℃ (extendable to 120℃ with EPDM). Compliant with international standards ISO 5752 and Chinese standard GB/T 12238, the D71X offers bidirectional sealing, low torque operation, and minimal pressure drop due to its streamlined flow path. Its simple yet robust structure allows it to handle slurry with little liquid retention at the pipeline mouth, making it ideal for space-constrained installations requiring quick, reliable, and maintenance-friendly flow control.

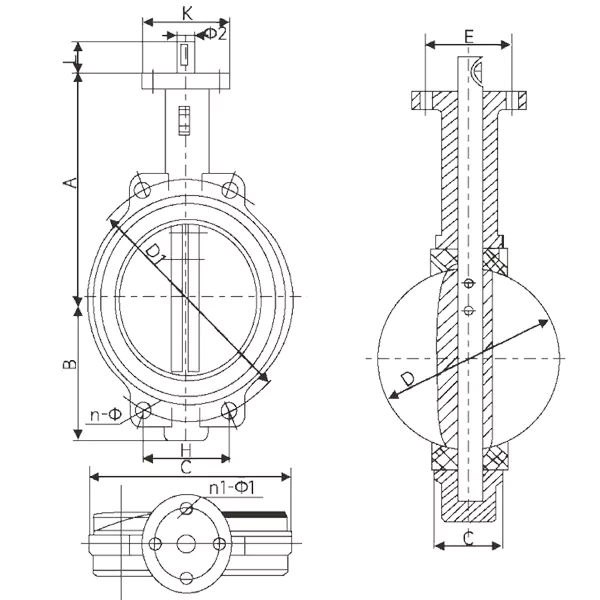

Installation diagram
Product Description
| DN | A | B | C | D | L | H | D1 | n-Φ | K | E | n1-Φ1 | Φ2 | G | f | J | X | |
| mm | inch | ||||||||||||||||
| 50 | 2 | 161 | 80 | 43 | 52.9 | 32 | 84.84 | 125 | 4-23 | 77 | 57.15 | 4-6.7 | 12.6 | 100 | 13 | 13.8 | 3 |
| 65 | 2.5 | 175 | 89 | 46 | 64.5 | 32 | 96.2 | 145 | 4-26.5 | 77 | 57.15 | 4-6.7 | 12.6 | 120 | 13 | 13.8 | 3 |
| 80 | 3 | 181 | 95 | 46 | 78.8 | 32 | 61.23 | 160 | 8-18 | 77 | 57.15 | 4-6.7 | 12.6 | 127 | 13 | 13.8 | 3 |
| 100 | 4 | 200 | 114 | 52 | 104 | 32 | 70.8 | 180 | 4-24.5 | 92 | 69.85 | 4-10.3 | 15.77 | 156 | 13 | 17.77 | 5 |
| 125 | 5 | 213 | 127 | 56 | 123.3 | 32 | 82.28 | 210 | 4-23 | 92 | 69.85 | 4-10.3 | 18.92 | 190 | 13 | 20.92 | 5 |
| 150 | 6 | 226 | 139 | 56 | 155.6 | 32 | 91.08 | 240 | 4-25 | 92 | 69.85 | 4-10.3 | 18.92 | 212 | 13 | 20.92 | 5 |
| 200 | 8 | 260 | 175 | 60 | 202.5 | 45 | 112.89 76.35 | 295 | 4-25 4-23 | 115 | 88.9 | 4-14.3 | 22.1 | 268 | 13 | 24.1 | 5 |
Main performance specification
| Nominal size | 50~200mm |
| Nominal pressure | 1.0~2.5MPa |
| Applicable medium | Clean water and sewage |
| Temperature | -10~80°C |
Materials of main parts
| Part name | Material |
| Valve body | Nodular cast iron |
| Seat tightness | Nitrile, ethylene propylene, polytetrafluroethylene, silicone rubber |
| Disc | Stainless steel |
| Valve shaft | Stainless steel |
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Wafer butterfly valve
Coliter®’s wafer butterfly valves offer efficient, cost-effective flow isolation and regulation in water supply, HVAC, fire protection, and industrial pipelines. The series includes the D71X manual wafer type, D371X worm gear operated model, D6/971X pneumatic/electric actuated versions, and high-performance D373H stainless steel hard-sealed valve. Featuring a compact wafer design that fits between flanges without end connections, these valves use EPDM, NBR, or PTFE seals for bubble-tight shut-off and are available in cast iron, ductile iron, or stainless steel bodies. Rated at PN10/PN16 (1.0–1.6 MPa) with operating temperatures from -10°C to 120°C (up to 200°C for metal-seated types), they comply with ISO 5752 and GB/T 12238 standards—ideal for space-constrained installations requiring low torque, quick operation, and reliable sealing.
