Coliter ® Brass Ball Valve with Filter – Lead-Free, PN16, Integrated Strainer

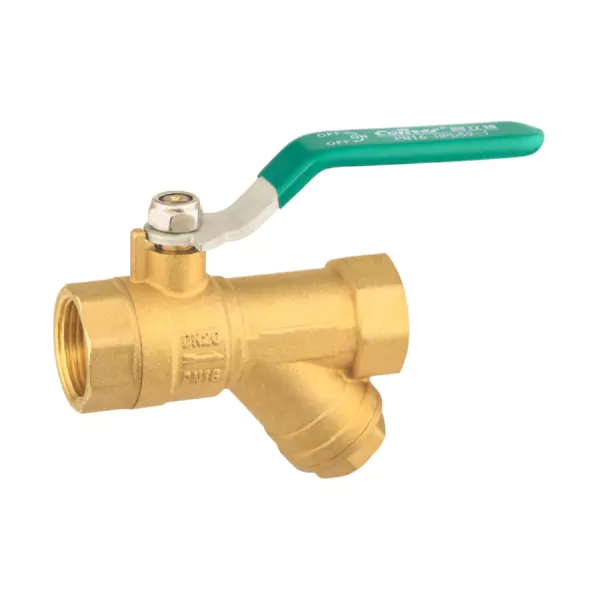

QF5302 Brass Ball Valve with Filter – Integrated Strainer for Clean Water Systems
The Coliter® QF5302 Brass Ball Valve with Filter is a lead-free, full-port ball valve featuring an integrated in-line strainer (filter) to protect downstream components—such as water meters, thermostatic valves, and pumps—from sediment, sand, and pipe debris. The filter basket is easily accessible for cleaning: simply close the ball valve, unscrew the filter cap, and remove contaminants without disconnecting the pipeline. Constructed from forged brass with a chrome-plated ball and PTFE seats, it ensures reliable bubble-tight shut-off and smooth quarter-turn operation. The valve has ISO 228 (BSP) parallel threads and is rated at PN16 (1.6 MPa), suitable for water, non-corrosive liquids, and saturated steam within a working temperature range of -20°C to 110°C. Compliant with WRAS and ACS standards, the QF5302 is ideal for residential water inlets, heating systems, irrigation lines, and utility connections where system cleanliness and long-term reliability are critical.

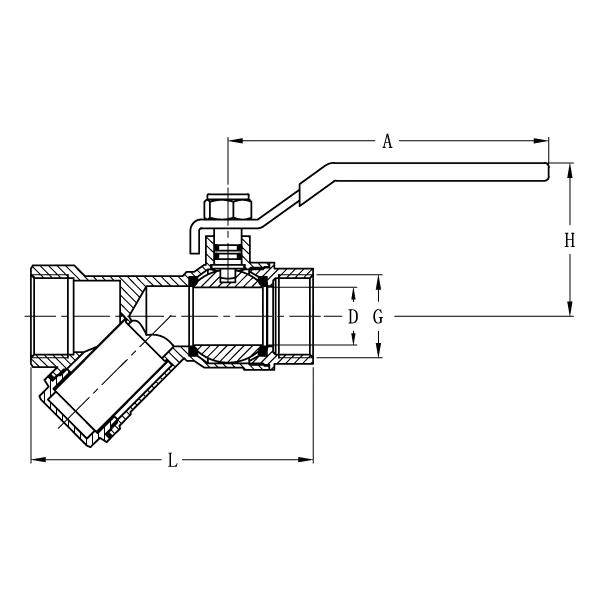

Installation diagram
Product Description
| DN | G | D | L | H | A |
| 15 | G1/2" | 13 | 51 | 49.5 | 95 |
| 20 | G3/4" | 17 | 55 | 52 | 95 |
| 25 | G1" | 22 | 65 | 59 | 127 |
| 32 | G1¼ | 25 | 71 | 61.5 | 127 |
| 40 | G1½ | 30 | 78 | 74 | 140 |
| 50 | G2" | 37 | 85 | 80 | 140 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water, Non-corrosive Liquids, Saturated Steam
Working Temperature: -20℃ ≤ t ≤ 110℃
Pipe Threads: ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Brass ball valve
Coliter® offers a comprehensive range of lead-free brass ball valves for residential, commercial, and light industrial applications. Our portfolio includes full-bore designs with lever or knob handles, available in female/male/union thread configurations (BSP ISO 228), extended stems for buried installations, and specialized variants with filters or thermowells. All valves feature PTFE seats, chrome-plated balls, and are rated at PN16 (1.6 MPa), suitable for water, oil, gas, and saturated steam up to 110°C. Compliant with WRAS, ACS, and GB/T 17241 standards, Coliter brass ball valves deliver bubble-tight shut-off, low torque operation, and long service life across plumbing, heating, irrigation, and utility systems.
