Coliter ® Multi-Function Sleeve Valve with Thermometer Port – PN16
QF5207 Multi-Function Prefabricated Sleeve Valve – Dual Outlet with Thermometer Port
The Coliter® QF5207 Multi-Function Prefabricated Sleeve Valve is an integrated lead-free brass valve designed for heating, HVAC, and advanced plumbing systems that require combined flow control, temperature monitoring, and auxiliary connections. It features a full-port ball valve body with two functional side outlets: one equipped with a dedicated thermowell port for thermometer or temperature sensor insertion, and another for a pressure gauge, water meter, or system drain. This intelligent prefabricated design reduces installation time, minimizes potential leak points, and enables real-time system diagnostics without additional fittings. Constructed from high-quality forged brass with a chrome-plated ball and PTFE seats, it ensures reliable bubble-tight shut-off and smooth operation. Rated at PN16 (1.6 MPa) and suitable for water within a temperature range of 0°C to 90°C, the QF5207 complies with GB/T 17241 and relevant potable water safety standards. Ideal for boiler inlets, heat exchangers, solar thermal systems, district heating substations, and energy-efficient building services.

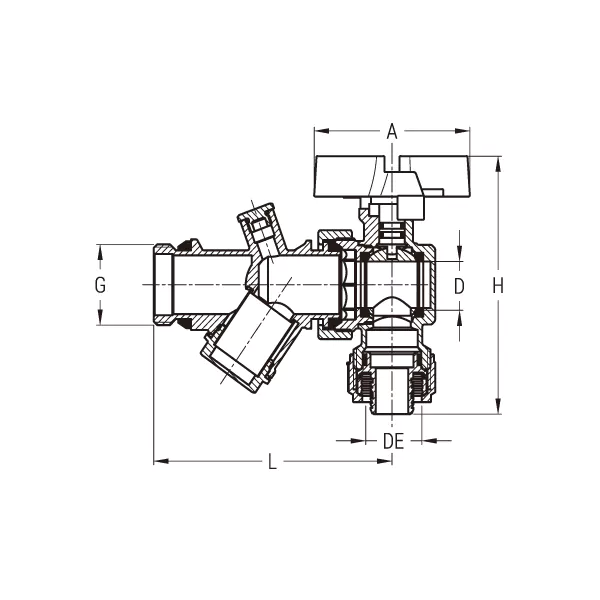

Installation diagram
Product Description
| DN | G | D | De | L | H | A |
| 25 | G1" | 19 | 25 | 102 | 105 | 66.5 |
| DN | G | D | De | L | H | A |
| 25 | G1" | 19 | 25 | 64 | 105 | 66.5 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water, Steam
Working Temperature: -20℃ ≤ t ≤ 100℃
Pipe Threads: ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Filter Ball Valve
Coliter®’s filter ball valves combine full-port shut-off with an integrated Y-strainer screen to trap sand, rust, and debris—protecting downstream equipment like water meters, pumps, and thermostatic valves. Models include the QF5002 (standard filter ball valve), QF5302 (with thermometer port), and multi-function variants like QF5206/QF5207 featuring dual outlets for meter leads or pressure gauges. Constructed from lead-free brass, rated at PN16 (1.6 MPa), and suitable for temperatures up to 100°C, all comply with WRAS, ACS, and GB/T 17241 standards for potable water safety. Ideal for residential plumbing, HVAC, and municipal installations—offering maintenance-friendly filtration and reliable isolation in a single compact unit.
