Coliter ® PPR Male Thread Ball Valve – PN20, Lead-Free Brass Core
QF2009 PPR Male Thread Ball Valve – Lead-Free Brass Core with PP-R Body for Hot & Cold Water Systems
The Coliter® QF2009 PPR Male Thread Ball Valve is a specialized hybrid valve designed for polypropylene (PP-R) piping systems in residential and commercial hot and cold potable water applications. It features a **pure PP-R body** on one end for direct heat-fusion welding to PP-R pipes, and a **male BSP thread (ISO 228)** on the other end for connection to metal fittings or equipment. The internal shut-off mechanism uses a **lead-free brass ball core** with PTFE seals, ensuring reliable bubble-tight closure, full-port flow, and smooth quarter-turn operation. Rated at **PN20 (2.0 MPa) at 20°C** and suitable for continuous service up to **95°C**, it complies with **ISO 15874 and GB/T 15564** standards. Ideal for solar water heaters, underfloor heating manifolds, and appliance connections where corrosion-free, long-life performance is required.

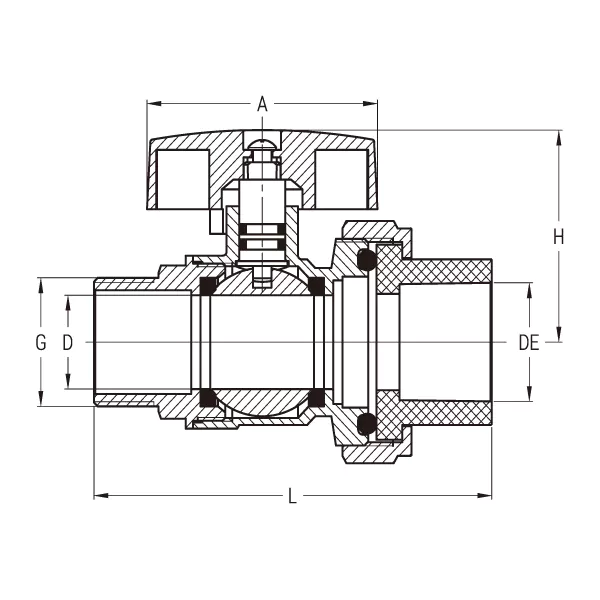

Installation diagram
Product Description
| DN | G | DE | D | L | H | A |
| 15.20 | G1/2" | 20 | 14 | 77.5 | 40 | 50 |
| 20.25 | G3/4" | 25 | 19 | 86.5 | 43 | 50 |
| 25.32 | G1" | 32 | 23 | 94.5 | 47 | 50 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water, Steam
Working Temperature: 0℃ ≤ t ≤ 90℃
Pipe Threads: ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to PP-R Ball Valve
Coliter® offers a complete series of PP-R ball valves designed for reliable shut-off in hot and cold potable water systems. Available in double union (QF2001, QF2030), female threaded (QF2008), male threaded (QF2009), and union-threaded hybrid (QF2002, QF2003) configurations, these valves feature pure PP-R body with brass ball core, ensuring durability, chemical resistance, and full-port flow. Rated for PN20 (2.0 MPa) at 20°C and suitable for temperatures up to 95°C, they comply with ISO 15874 and GB/T 15564 standards. Ideal for underfloor heating, residential plumbing, and solar water systems—enabling fast heat-fusion installation without metal corrosion or scaling.
