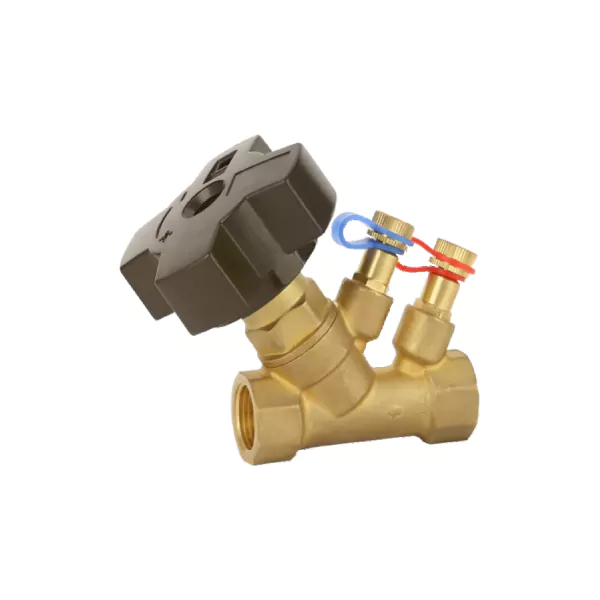

Coliter ® Digital Static Balance Valve, 1.6MPa, -20–120°C, Built-in Flow Meter, BSP Threaded
PH1003 Digital Static Balance Valve – Precision Hydraulic Balancing Valve with Integrated Flow Measurement for HVAC Systems
The Coliter® PH1003 Digital Static Balance Valve is a high-precision static balancing valve engineered for accurate flow setting and hydraulic commissioning in heating, ventilation, and air conditioning (HVAC) systems. Constructed from lead-free brass, it integrates a built-in digital pressure differential sensor and dual measuring ports, enabling technicians to directly read real-time flow rates without external instruments—dramatically speeding up system balancing. Rated at PN16 (1.6 MPa) and suitable for water media within a temperature range of -20°C to 120°C, it complies with international standards including EN 15437 and GB/T 32808. Featuring full-port design and ISO 228 (BSP parallel) threads, it is available in sizes DN15 (G1/2") through DN50 (G2"). Ideal for radiant floor manifolds, fan coil units, chiller plants, and district heating networks—ensuring even heat distribution, energy savings, and long-term system stability.

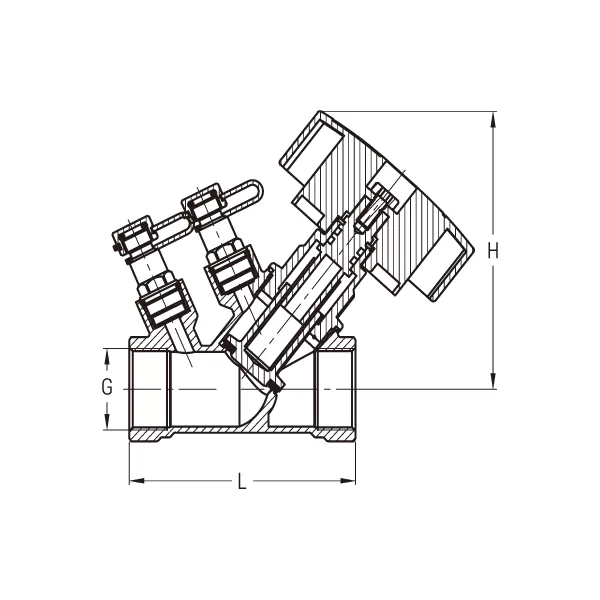

Installation diagram
Product Description
| DN | G | L | H |
| 15 | G1/2" | 90 | 100 |
| 20 | G3/4" | 97 | 100 |
| 25 | G1" | 110 | 105 |
| 32 | G1¼ | 124 | 110 |
| 40 | G1½ | 130 | 120 |
| 50 | G2" | 155 | 120 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water
Working Temperature: -20℃ ≤ t ≤ 100℃
Pipe Threads: ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Balance Valve
Coliter®’s digital static balance valves, including the PH1001 and PH1003 models, enable precise flow measurement and hydraulic balancing in HVAC and district heating systems. These brass valves integrate a built-in digital pressure differential sensor and measuring ports, allowing technicians to quickly read flow rates and adjust circuit resistance without external instruments. Rated at PN16 (1.6 MPa) and suitable for temperatures up to 120°C, they feature full-port design, lead-free brass construction, and G1/2"–G2" ISO 228 threaded connections. Ideal for commissioning radiant floor manifolds, fan coil units, and chiller plants—ensuring energy efficiency, even heat distribution, and compliance with EN 15437 or GB/T standards for system balancing.
