Coliter ® Frost-Proof Drain Ball Valve – Lead-Free, PN16, Anti-Freeze Design
FZF001 Frost-Proof Drain Ball Valve – Automatic Anti-Freeze Protection for Outdoor Water Lines
The Coliter® FZF001 Frost-Proof Drain Ball Valve is a specialized lead-free ball valve designed to prevent pipe freezing in outdoor or unheated water applications. When closed, its unique internal mechanism automatically drains residual water from the valve body and downstream pipe section through a dedicated drain port, eliminating freeze damage risk. Constructed from forged brass with a chrome-plated ball and PTFE seats, it ensures reliable quarter-turn operation and bubble-tight sealing. The valve features ISO 228 (BSP) parallel female threads and is rated at PN16 (1.6 MPa) for water service, with a working temperature range of -20°C to 80°C. Compliant with WRAS and ACS standards, the FZF001 is ideal for garden taps, irrigation systems, hose bibbs, and seasonal water outlets in cold climates.

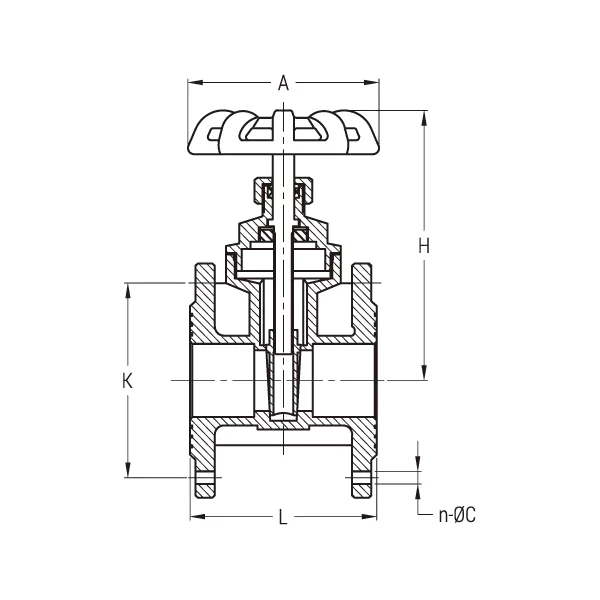

Installation diagram
Product Description
| DN | n-ØC | K | L | H | A |
| 15 | 4-Ø14 | 65 | 77 | 85 | 78 |
| 20 | 4-Ø14 | 75 | 88 | 95 | 78 |
| 25 | 4-Ø14 | 85 | 92 | 104 | 78 |
| 32 | 4-Ø18 | 100 | 103 | 123 | 108 |
| 40 | 4-Ø18 | 110 | 115 | 137 | 108 |
| 50 | 4-Ø18 | 125 | 116 | 144 | 108 |
| 65 | 4-Ø18 | 145 | 128 | 172 | 126 |
| 80 | 8-Ø18 | 160 | 147 | 189 | 145 |
| 100 | 8-Ø18 | 180 | 164 | 234 | 180 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water, Oil, Saturated Steam
Operating Temperature: -20°C ≤ t ≤ 110°C
Flange Dimensions: Compliant with GB/T 15530.1 Standard
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Flanged Gate Valve
Coliter® supplies robust flanged gate valves designed for full-port isolation in municipal water, HVAC, and industrial pipeline systems. Featuring a cast iron body with epoxy coating, resilient wedge gate, and PN16 (1.6 MPa) pressure rating, these valves ensure bubble-tight shut-off and long-term corrosion resistance. Compliant with GB/T 12232 standards, they are available in sizes from DN50 to DN300 with standard flange drilling per GB/T 17241.6. Ideal for water treatment plants, pump stations, and district heating networks—where durability, reliability, and easy maintenance are critical. Backed by ISO-certified manufacturing and global OEM support.
