Coliter ® Rising Stem Soft Sealing Gate Valve – PN10/16, ≤80°C, Zero Leakage for Water & Industrial Systems

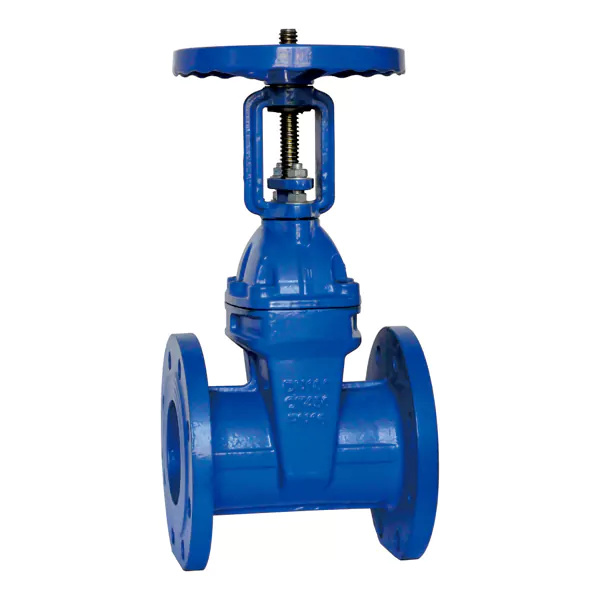

Z41X Rising Stem Soft Sealing Gate Valve – Full-Port Gate Valve with Visual Stem Indication and EPDM/NBR Seal
The Coliter® Z41X Rising Stem Soft Sealing Gate Valve is a high-performance isolation valve engineered for reliable, bubble-tight shut-off in water supply, HVAC, fire protection, municipal, and industrial pipeline systems. Its rising stem design provides clear visual indication of the valve’s open/closed status—making it ideal for above-ground installations where operational feedback is critical. The valve features a resilient EPDM or NBR elastomer-coated wedge gate that compresses against a precision-machined seat to ensure zero leakage, even after prolonged use. Constructed with a body made of grey cast iron, ductile iron, or cast steel (optional), and a stainless steel stem (materials include 45#, 1Cr13, 304, 416, or 316), it delivers excellent corrosion resistance and smooth operation. Rated for PN10/16 (1.0–2.5 MPa) and suitable for media temperatures up to 80°C, the Z41X complies with GB/T 12234, GB/T 17241.6, and GB/T 13927 standards. It incorporates a flat-bottom valve cavity to prevent sediment buildup, offers full-port flow for minimal pressure drop, and uses standard flanged end connections. Available in sizes from DN50 to DN400, it supports manual, electric, pneumatic, or hydraulic actuation—ensuring long service life, low torque operation, and dependable performance in critical fluid control applications.

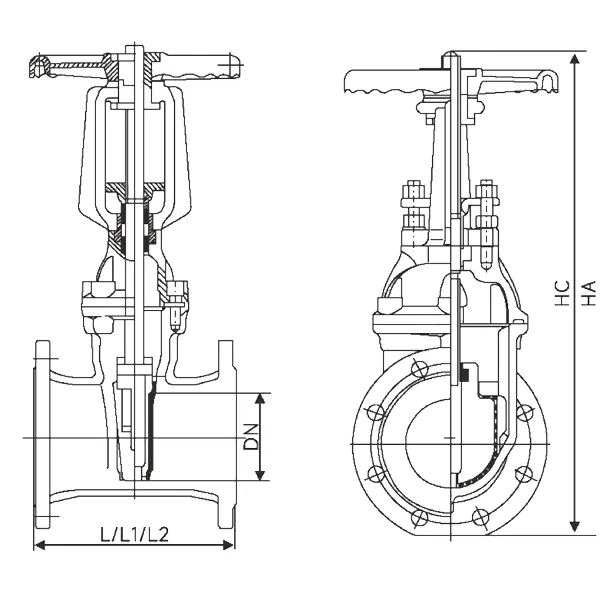

Installation diagram
Product Description
| DN | L | HA | HC | D | Z-Φd | |
| 1.0/1.6MPa | 1.0MPa | 1.6MPa | ||||
| 50 | 178 | 322 | 374 | 165 | 4-19 | 4-19 |
| 65 | 190 | 332 | 398 | 185 | 4-19 | 4-19 |
| 80 | 203 | 350 | 429 | 200 | 8-19 | 8-19 |
| 100 | 229 | 420 | 524 | 220 | 8-19 | 8-19 |
| 125 | 254 | 581 | 721 | 250 | 8-19 | 8-19 |
| 150 | 267 | 581 | 736 | 285 | 8-23 | 8-23 |
| 200 | 292 | 736 | 942 | 340 | 8-23 | 12-23 |
| 250 | 330 | 882 | 1031 | 405 | 12-23 | 12-28 |
| 300 | 356 | 1009 | 1117 | 460 | 12-23 | 12-28 |
| 350 | 381 | 1300 | 1655 | 520 | 16-28 | 16-28 |
| 400 | 406 | 1380 | 1805 | 580 | 16-28 | 16-31 |
Z41X rising stem soft sealing gate valve, in addition to the advantages of elastic seat sealing gatevalve, can also have a more intuitive valve opening. fast and reliable opening and closing. so it is often usedin fire protection and industrial systems. Generally installed at a high position above the ground.
Main performance specification
Nominal pressure: 1.0~2.5MPa
Nominal diameter: 50~400mm
Applicable media: Water, oil, gas, etc
Working temperature: ≤80℃
Flange standard: GB/T17241.6 GB9113
Test standard GB13927 API598
Materials of main parts
Hand wheel: Malleable iron, ductile iron, cast steel, stainless steel
Stem nut: copper alloy
Bracket: Grey cast iron, ductile iron, cast steel
Gland: Ductile iron, cast steel
Seal ring: NBR, EPDM
Stem: Stainless steel(45#, 1Cr13, 304, 416, 316)
Middle mouth pad: NBR, EPDM
Ram: Ductile iron + EPDM or NBR
Valve body: Grey cast iron, ductile iron, cast steel
Transmission mode: manual, electric, pneumatic and hydraulic.
