Coliter ® Magnetic Lock Soft Seal Gate Valve – PN10/16, -10~80°C, Tool-Operated Secure Gate Valve for Water & Sewage Systems

CZ15X Magnetic Lock Soft Seal Gate Valve – Threaded Gate Valve with Magnetic Self-Locking for Tamper-Proof Flow Control

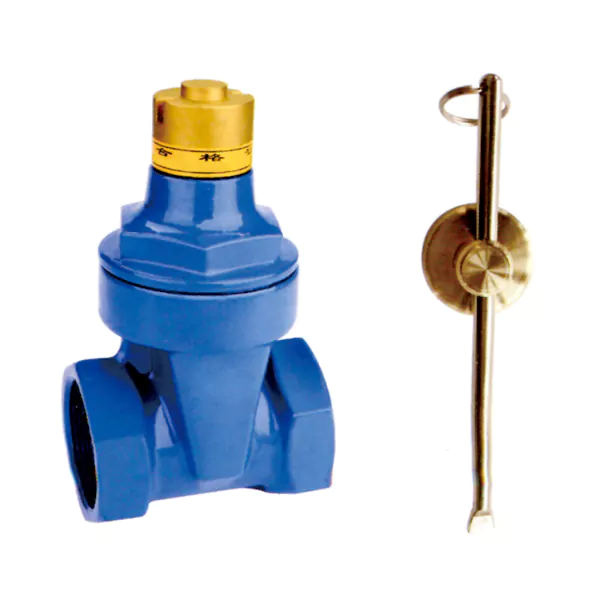

The Coliter® CZ15X Magnetic Lock Soft Seal Gate Valve is a compact, threaded-end security valve engineered for residential water supply, heating systems, and small utility networks where unauthorized operation must be prevented. It features an innovative magnetic self-locking mechanism that automatically locks the valve at any position—open, closed, or partially open—and can only be operated using a dedicated magnetic tool, offering superior anti-theft and tamper-proof protection without external keys or mechanical locks. The valve achieves bubble-tight shut-off through a resilient NBR or EPDM elastomer-coated wedge gate that compresses against a precision-machined ductile iron seat, eliminating leakage and overcoming common issues like rust and poor sealing in conventional gate valves. Its flat-bottom valve cavity mirrors the internal pipe profile, preventing debris buildup and ensuring smooth, low-resistance flow. Constructed from high-grade ductile iron (QT450) for the body, bonnet, and disc—with a corrosion-resistant stainless steel stem—the CZ15X ensures long service life and reliable operation. Both interior and exterior surfaces are coated with non-toxic epoxy resin, making it safe for potable water and suitable for sewage applications. Rated for PN10/16 (1.0–1.6 MPa) and suitable for media temperatures from -10°C to 80°C, it complies with Chinese standards including GB/T 8464 (design and structure), GB/T 13927 (testing), and JB/T 7307 (BSP parallel threads). Available in sizes from DN15 to DN100 with female BSP (silk mouth) threaded ends, the CZ15X delivers zero leakage, secure control, and maintenance-free performance in space-constrained installations.
