Coliter ® PPR Male Thread Union Ball Valve – PN20, Lead-Free Brass Core
QF2001 PPR Male Thread Union Ball Valve – Lead-Free Brass Core with PP-R Body
The Coliter® QF2001 PPR Male Thread Union Ball Valve is a hybrid valve specifically designed for polypropylene (PP-R) piping systems in residential and commercial hot and cold potable water applications. It features a pure PP-R body on one end for direct heat-fusion welding to PP-R pipes, and a BSP male thread with an integrated union nut on the other end—enabling secure, leak-free connection to female-threaded fittings while allowing easy disassembly for maintenance without cutting the pipeline. The internal shut-off mechanism uses a lead-free brass ball core with PTFE seals, ensuring full-port flow, bubble-tight sealing, and smooth quarter-turn operation. Rated at PN20 (2.0 MPa) at 20°C and suitable for continuous service up to 95°C, it complies with ISO 15874 and GB/T 15564 standards. Ideal for solar water heaters, underfloor heating manifolds, water heaters, and appliance connections where long-term corrosion resistance and serviceability are essential.

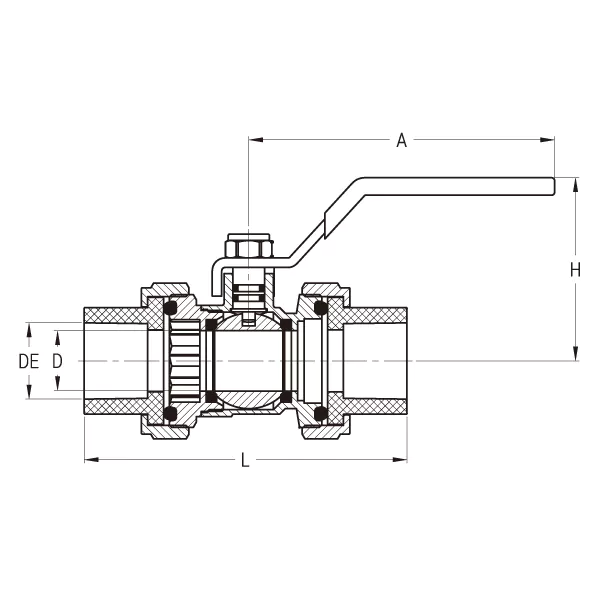

Installation diagram
Product Description
| DE | D | L | H | A |
| 20 | 14 | 91.5 | 54 | 96.5 |
| 25 | 19 | 102 | 58 | 96.5 |
| 32 | 23 | 115 | 60.5 | 127.5 |
| 40 | 29 | 132 | 76.5 | 141.5 |
| 50 | 37 | 149 | 81.5 | 141.5 |
| 63 | 47 | 169 | 88.5 | 166.5 |
| 75 | 57 | 189 | 112 | 231.5 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water, Steam
Working Temperature: 0℃ ≤ t ≤ 90℃
PP-R Fittings: GB/T 18742.3 Compliant
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to PP-R Ball Valve
Coliter® offers a complete series of PP-R ball valves designed for reliable shut-off in hot and cold potable water systems. Available in double union (QF2001, QF2030), female threaded (QF2008), male threaded (QF2009), and union-threaded hybrid (QF2002, QF2003) configurations, these valves feature pure PP-R body with brass ball core, ensuring durability, chemical resistance, and full-port flow. Rated for PN20 (2.0 MPa) at 20°C and suitable for temperatures up to 95°C, they comply with ISO 15874 and GB/T 15564 standards. Ideal for underfloor heating, residential plumbing, and solar water systems—enabling fast heat-fusion installation without metal corrosion or scaling.
