Coliter ® PPR Female Thread Union Ball Valve – PN20, Lead-Free Brass Core
QF2002 PPR Female Thread Union Ball Valve – Lead-Free Brass Core with PP-R Body
The Coliter® QF2002 PPR Female Thread Union Ball Valve is a hybrid valve engineered for polypropylene (PP-R) piping systems in residential and commercial hot and cold potable water applications. It features a pure PP-R body on one end for direct heat-fusion welding to PP-R pipes, and a BSP female thread with an integrated union nut on the other end—allowing secure connection to male-threaded fittings while enabling easy disassembly or replacement without cutting the pipeline. The internal shut-off mechanism uses a lead-free brass ball core with PTFE seals, ensuring full-port flow, bubble-tight sealing, and smooth quarter-turn operation. Rated at PN20 (2.0 MPa) at 20°C and suitable for continuous service up to 95°C, it complies with ISO 15874 and GB/T 15564 standards. Ideal for water meter leads, solar thermal systems, underfloor heating manifolds, and equipment connections where corrosion resistance, reliability, and future maintenance are critical.

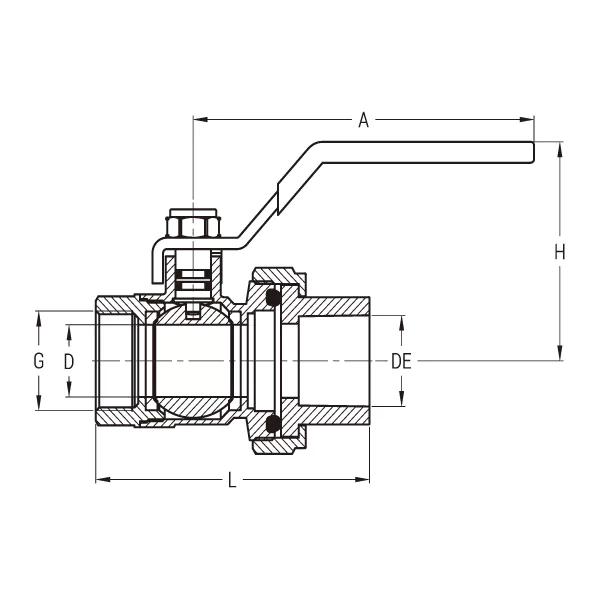

Installation diagram
Product Description
| DN | G | DE | D | L | H | A |
| 15.20 | G1/2" | 20 | 14 | 69 | 54 | 96.5 |
| 20.25 | G3/4" | 25 | 19 | 77.5 | 57.5 | 96.5 |
| 25.25 | G1" | 25 | 23 | 86 | 60.5 | 127.5 |
| 25.32 | G1" | 32 | 23 | 90.5 | 60.5 | 127.5 |
| 32.40 | G1¼ | 40 | 29 | 103.5 | 76.5 | 141.5 |
| 40.50 | G1½ | 50 | 37 | 117 | 81.5 | 141.5 |
| 50.63 | G2" | 63 | 47 | 134.5 | 88.5 | 166.5 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water, Steam
Working Temperature: 0℃ ≤ t ≤ 90℃
Pipe Threads: ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to PP-R Ball Valve
Coliter® offers a complete series of PP-R ball valves designed for reliable shut-off in hot and cold potable water systems. Available in double union (QF2001, QF2030), female threaded (QF2008), male threaded (QF2009), and union-threaded hybrid (QF2002, QF2003) configurations, these valves feature pure PP-R body with brass ball core, ensuring durability, chemical resistance, and full-port flow. Rated for PN20 (2.0 MPa) at 20°C and suitable for temperatures up to 95°C, they comply with ISO 15874 and GB/T 15564 standards. Ideal for underfloor heating, residential plumbing, and solar water systems—enabling fast heat-fusion installation without metal corrosion or scaling.
