Coliter ® Dark Rod Hard Seal Gate Valve – PN16, -10~80°C, Metal-to-Metal Sealing for Water, Steam & Oil

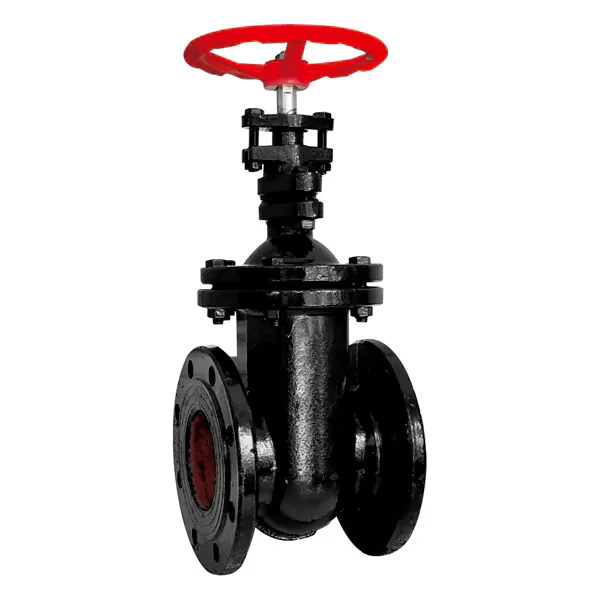

Z45T Dark Rod Hard Seal Gate Valve – Non-Rising Stem Gate Valve with Ductile Iron Body and Brass/Stainless Steel Wedge
The Coliter® Z45T Dark Rod Hard Seal Gate Valve is a robust industrial gate valve designed for reliable shut-off in demanding applications involving water, steam, oil, and other non-corrosive media. Featuring a non-rising (dark rod) stem design, it saves vertical installation space—ideal for underground or confined installations. Unlike soft-seal valves, the Z45T employs a metal-to-metal hard sealing structure: a precision-machined wedge made of brass or ductile iron seals directly against a hardened seat integrated into the ductile iron body, ensuring long-term durability in high-temperature or abrasive environments where elastomers would degrade. The valve body and bonnet are cast from nodular (ductile) cast iron (QT450), while the stem is available in carbon steel, stainless steel, or brass for enhanced corrosion resistance. Rated at PN16 (1.6 MPa) with a test pressure of 2.4 MPa (shell) and 1.76 MPa (seal), it operates reliably within a temperature range of -10°C to 80°C. Compliant with GB/T 12234 standards, the Z45T features flanged end connections and full-port flow for minimal pressure drop. Available in sizes from DN50 to DN1200, it is widely used in petroleum, chemical, power generation, and district heating systems—delivering maintenance-free, fire-safe, and erosion-resistant performance.

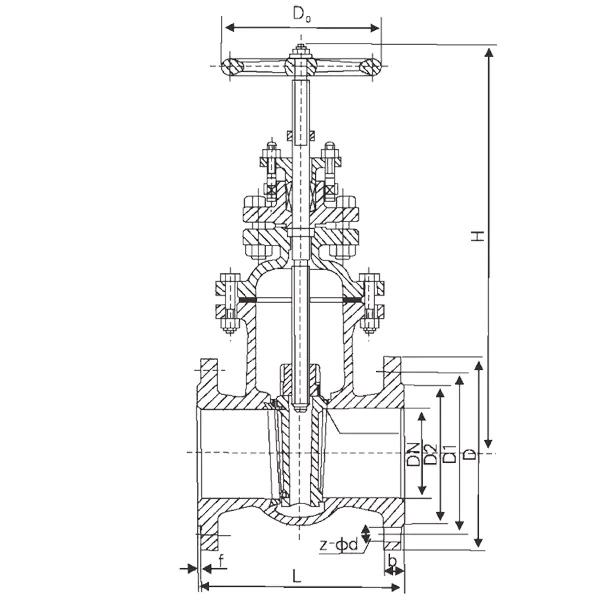

Installation diagram
Product Description
| DN | L | D | D1 | D2 | b-f | Z-Φd | H | Do |
| 50 | 178 | 160 | 125 | 100 | 19-3 | 4-18 | 290 | 150 |
| 65 | 190 | 180 | 145 | 120 | 19-3 | 4-18 | 315 | 150 |
| 80 | 203 | 195 | 160 | 135 | 21-3 | 4-18 | 362 | 184 |
| 100 | 229 | 215 | 180 | 155 | 21-3 | 8-18 | 397 | 184 |
| 125 | 254 | 245 | 210 | 185 | 23-3 | 8-18 | 447 | 225 |
| 150 | 280 | 280 | 240 | 210 | 24-3 | 8-23 | 500 | 225 |
| 200 | 330 | 335 | 295 | 265 | 26-3 | 8-23 | 597 | 320 |
| 250 | 380 | 390 | 350 | 320 | 28-3 | 12-23 | 735 | 320 |
| 300 | 420 | 440 | 400 | 368 | 28-4 | 12-23 | 840 | 400 |
| 350 | 450 | 500 | 460 | 428 | 29-3 | 16-23 | 925 | 400 |
| 400 | 480 | 565 | 515 | 482 | 31-3 | 16-25 | 1087 | 500 |
| 450 | 510 | 615 | 565 | 532 | 32-4 | 20-25 | 1170 | 500 |
| 500 | 540 | 670 | 620 | 585 | 34-4 | 20-25 | 1365 | 500 |
| 600 | 600 | 780 | 725 | 685 | 36-5 | 20-30 | 1585 | 500 |
| 700 | 660 | 895 | 840 | 800 | 40-5 | 24-30 | 1717 | 900 |
| 800 | 720 | 1010 | 950 | 905 | 44-5 | 24-34 | 1873 | 900 |
| 900 | 780 | 1110 | 1050 | 1005 | 46-4 | 28-34 | - | - |
| 1000 | 840 | 1220 | 1160 | 1115 | 50-5 | 28-34 | - | - |
| 1200 | 960 | 1450 | 1380 | 1325 | 56-5 | 32-41 | - | - |
This valve is suitable for industries such as petroleum, chemical, pharmaceutical, and electric power,and is used for opening and closing pipelines in water and oil media.
Main performance specification
| Nominal pressure | Test pressure | Temperature | Applicable medium | |
| Strength(water) | Sealing(water) | |||
| 1.6 | 2.4MPa | 1.76MPa | -10~80℃ | Water, steam, oil |
Materials of main parts
| Part name | Material |
| Valve body, valve cover | Nodular cast iron |
| Ram | Ductile iron, brass |
| Valve stem | Carbon steel, stainless steel, brass |
| Sealing washer | Brass, ductile iron |
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Hard seal gate valve
Coliter®’s hard sealing gate valves are engineered for demanding applications in steam, oil, gas, and high-temperature water systems where metal-to-metal sealing ensures long-term reliability. The series includes the Z41T rising stem gate valve and Z45T non-rising (dark rod) gate valve, featuring a precision-machined bronze or stainless steel wedge that seals directly against a hardened seat—eliminating elastomer degradation risks. Rated at PN16 (1.6 MPa) and suitable for temperatures up to 200°C (depending on material), these valves comply with GB/T 12234 and offer full-port flow with robust cast iron or ductile iron bodies. Ideal for power plants, district heating, industrial pipelines, and fire protection systems requiring maintenance-free, fire-safe shut-off performance.
