Coliter ® Full Bore Male Threaded Ball Valve – Lead-Free, PN16, WRAS Certified

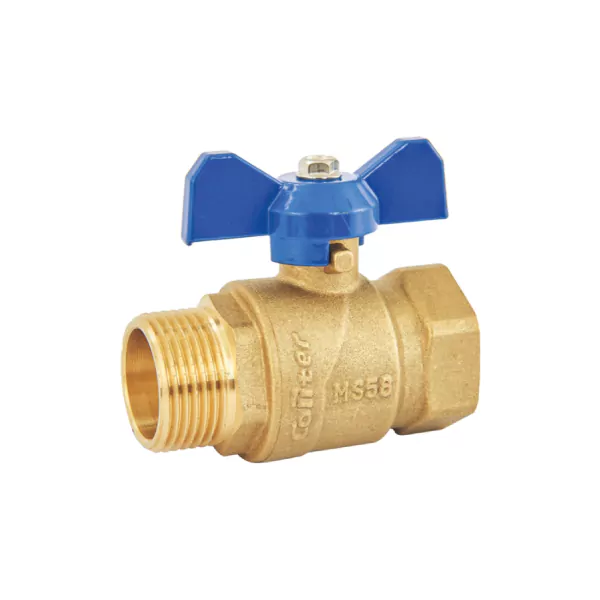

QF1006 Full Bore Male Threaded Ball Valve – Lead-Free Brass with Lever Handle
The Coliter® QF1006 Full Bore Male Threaded Ball Valve is a lead-free brass ball valve designed for reliable shut-off in residential, commercial, and light industrial plumbing systems. It features a full-port design and a precision-machined chrome-plated brass ball with PTFE seats to ensure minimal pressure loss and bubble-tight sealing. The valve has ISO 228 (BSP) parallel male threads on both ends and is operated via a robust lever handle for clear visual indication and easy quarter-turn control. Rated at PN16 (1.6 MPa), it is suitable for water, oil, and saturated steam within a temperature range of -20°C to 100°C. Compliant with WRAS and ACS standards, the QF1006 is ideal for appliance connections, branch lines, and equipment isolation where quick, dependable operation is essential.

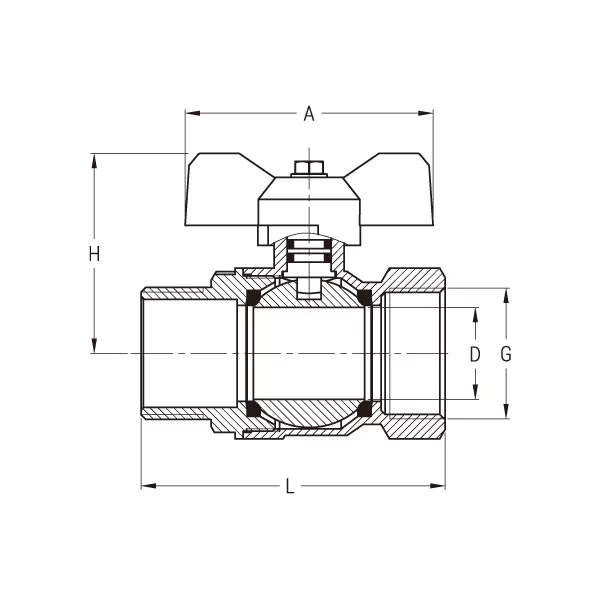

Installation diagram
Product Description
| DN | G | D | L | H | A |
| 15 | 1/2" | 14 | 58 | 40 | 54 |
| 20 | 3/4" | 19 | 64 | 43 | 54 |
| 25 | 1" | 23 | 74.5 | 52.5 | 67 |
Technical Specifications
Nominal Pressure:1.6 MPa
Working Medium:Water, Oil, Saturated Steam
Working Temperature:-20℃ ≤ t ≤ 100℃
Pipe Threads:ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Brass ball valve
Coliter® offers a comprehensive range of lead-free brass ball valves for residential, commercial, and light industrial applications. Our portfolio includes full-bore designs with lever or knob handles, available in female/male/union thread configurations (BSP ISO 228), extended stems for buried installations, and specialized variants with filters or thermowells. All valves feature PTFE seats, chrome-plated balls, and are rated at PN16 (1.6 MPa), suitable for water, oil, gas, and saturated steam up to 110°C. Compliant with WRAS, ACS, and GB/T 17241 standards, Coliter brass ball valves deliver bubble-tight shut-off, low torque operation, and long service life across plumbing, heating, irrigation, and utility systems.
