Coliter ® Flanged Y-Strainer Filter, 1.6MPa, -20–110°C, Cast Iron Body, GB/T Flange Standard

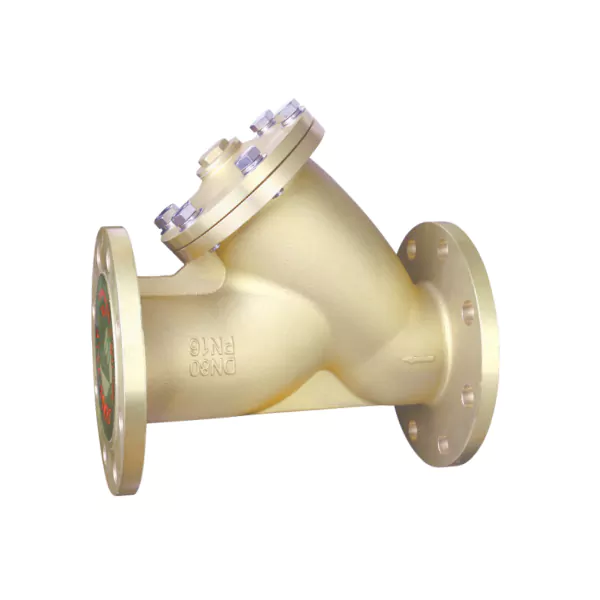

GL3001 Flanged Filter – Y-Type Strainer for Water, Oil, and Saturated Steam Systems
The Coliter® GL3001 Flanged Filter is a robust Y-type strainer designed to protect downstream equipment—such as pumps, meters, and control valves—from damage caused by sand, rust, scale, and other pipeline debris in water, oil, and saturated steam systems. Constructed from cast iron with a precision-mesh stainless steel screen (typically 40–100 mesh), it ensures high filtration efficiency and easy maintenance via a removable blow-off plug. Rated for a nominal pressure of 1.6 MPa and operating temperatures from -20°C to 110°C, it complies with Chinese flange standards GB/T 17241.6 and GB/T 15530.1. Available in sizes DN40 to DN150, the GL3001 features standard flange dimensions for seamless integration into industrial, HVAC, and municipal pipelines—ensuring clean fluid flow and extended system life.

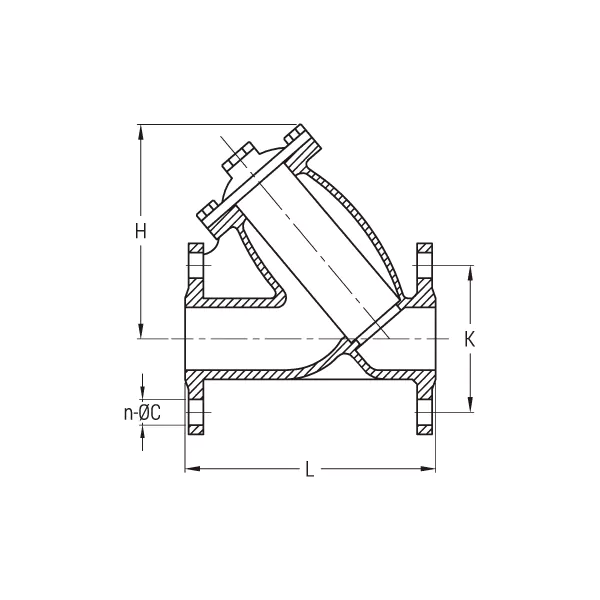

Installation diagram
Product Description
| DN | n-ØC | K | L | H |
| 40 | 4-Ø18 | 110 | 176 | 106 |
| 50 | 4-Ø18 | 125 | 210 | 115 |
| 65 | 4-Ø18 | 145 | 246 | 155 |
| 80 | 8-Ø18 | 160 | 273 | 190 |
| 100 | 8-Ø18 | 180 | 315 | 230 |
| 125 | 8-Ø18 | 210 | 341 | 255 |
| 150 | 8-Ø23 | 240 | 402 | 280 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water、Oil, Saturated Steam
Working Temperature: -20℃ ≤ t ≤ 110℃
Flange Dimensions: GB/T 15530.1
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Filter Valve
Coliter® offers high-efficiency filter valves designed to remove sand, rust, and debris from potable water, heating, and industrial fluid systems—protecting meters, pumps, and control valves from damage. The range includes the GL1001 brass in-line filter valve with 40–100 mesh stainless steel screen, and the GL3001 flanged Y-strainer for larger pipelines. Both feature lead-free brass or cast iron bodies, PV16 (1.6 MPa) rating, and operating temperatures up to 120°C. The GL1001 uses ISO 228 threads (G1/2"–G2"), while the GL3001 complies with GB/T 17241.6 flange standards. Ideal for residential plumbing, HVAC, and municipal installations—ensuring clean flow and extended equipment life with easy maintenance access.
