Coliter ® Intelligent Manifold, PN1.0MPa, 0–110°C, Brass HPb58-2, IoT-Ready, 2–10 Circuits

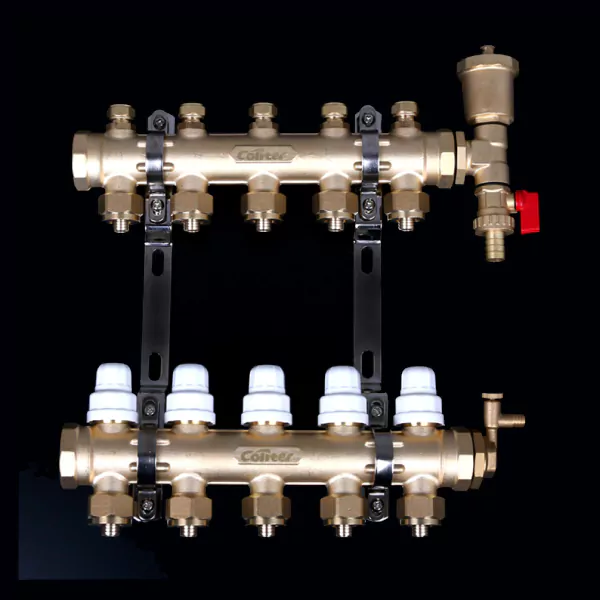

FSQ2015 Intelligent Manifold – IoT-Enabled Brass Distribution System for Smart Building Management
The Coliter® FSQ2015 Intelligent Manifold is a next-generation brass manifold designed for smart hydronic heating, underfloor radiant systems, and IoT-integrated building management. Constructed from high-density forged HPb58-2 brass, it features uniform, sand-hole-free walls with an average thickness of ≥2.0 mm, ensuring exceptional strength and resistance to thermal cycling and water hammer. The main header uses DN25 (G1") threaded connections, with a fixed center height of 210 mm. Available in configurations from 2 to 10 circuits, it supports standard PEX/PERT tubing sizes of 12×16 mm or 16×20 mm at a precise circuit spacing of 50 mm. Rated for PN ≤ 1.0 MPa and medium temperatures from 0°C to 110°C, the FSQ2015 is engineered for seamless integration with electric actuators, smart thermostats, and building automation systems—enabling remote zone control, real-time monitoring, and energy optimization. Includes live-joint outlet adapters for tool-free installation and maintenance, making it ideal for modern residential and commercial smart heating applications.

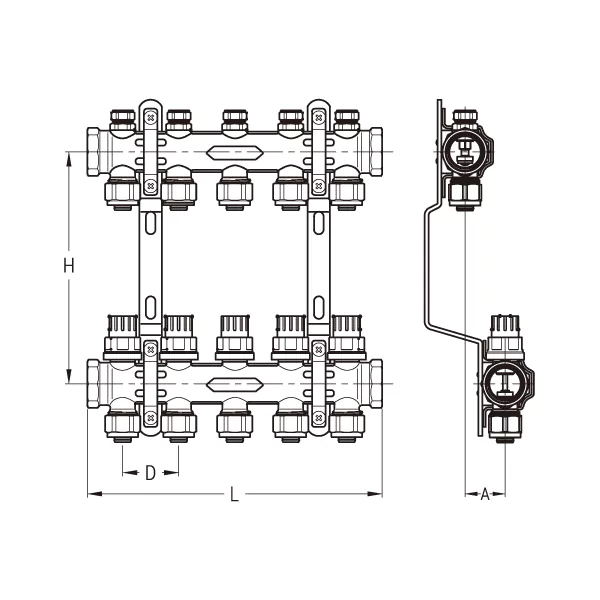

Installation diagram
Product Description
| DN | D | L | A | H |
| 25*1216 | 50 | (N-1)*50+63 | 36.5 | 210 |
| 25*1620 | 50 | (N-1)*50+63 | 36.5 | 210 |
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Manifolds
Coliter® offers a complete range of manifold systems for centralized control and distribution of hot and cold water in residential, commercial, and underfloor heating applications. The series includes the FSQ2022 Smart Manifold with integrated flow meters and digital monitoring, the FSQ2018 Manual/Automatic Manifold with optional electric actuators, the FSQ2015 Intelligent Manifold for IoT-enabled building management, and reliable manual models like FSQ2009C and FSQ1031. All feature high-quality brass construction, full-port ball valves for individual circuit shut-off, and G1/2" or G3/4" ISO 228 connections. Designed for easy installation, leak-free performance, and long-term serviceability—ideal for modern plumbing efficiency, radiant floor heating, and smart home integration.
